Product Detailed Parameters
- Description：RF FILTER BAND PASS UWB 0603
- Series：AFII-LC
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- Frequency：7.245GHz Center
- Bandwidth：2.01GHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：1.5dB
- Mounting Type：Surface Mount
- Package / Case：0603 (1608 Metric), 3 PC Pad
- Size / Dimension：0.063" L x 0.032" W (1.60mm x 0.80mm)
- Height (Max)：0.022" (0.55mm)
Download product information
Overview

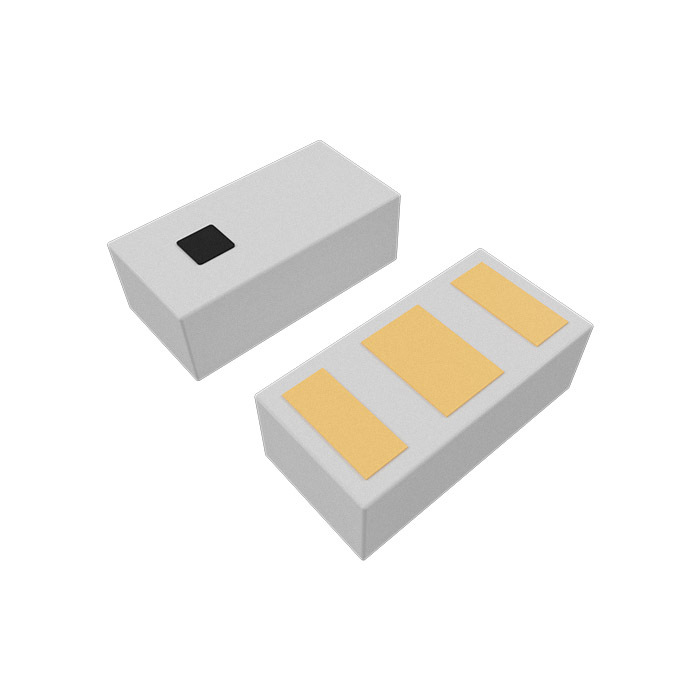

The AFII-LC-0048 is a surface-mount band pass filter designed for Ultra-Wideband (UWB) applications. It operates within a frequency range of 6.24GHz to 8.25GHz, with a center frequency of 7.245GHz and a bandwidth of 2.01GHz. The component features an insertion loss of 1.5dB and supports 3W power handling. Packaged in a compact 0603 [1608 Metric] footprint with three pins, it offers single-ended input and output configurations.
Feature Summary
- Provides high out-of-band rejection and excellent selectivity for signal integrity
- Features low insertion loss for efficient signal transmission
- Designed for high-quality performance in UWB systems
Applications
- Ultra-Wideband communication modules
- Short-range high-precision data transmission systems
- RF signal conditioning circuits
Procurement Notes
Verify the specific datasheet version when ordering, as manufacturer specifications may be updated. Confirm that the 0603 package dimensions align with your PCB footprint requirements. Ensure compatibility with the intended UWB frequency bands before integration into the final design.
Selection Notes
Select this component for applications requiring precise filtering in the 6.24GHz to 8.25GHz range. Its small 0603 form factor makes it suitable for space-constrained designs. Consider its 1.5dB insertion loss and 3W power rating when evaluating system efficiency and thermal management needs.
Part Context
This part belongs to Abracon's RF filter portfolio, specifically targeting UWB antenna and signal conditioning solutions. It complements other chip antennas offered by the manufacturer for complete short-range wireless subsystems.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult official distributor databases for cross-reference options if alternative sourcing is required.
FAQ
What is the center frequency of the AFII-LC-0048?
The center frequency is 7.245GHz.
Does this filter support single-ended or differential connections?
It features single-ended input and output configurations.
