AFII-TC-0015

Overview

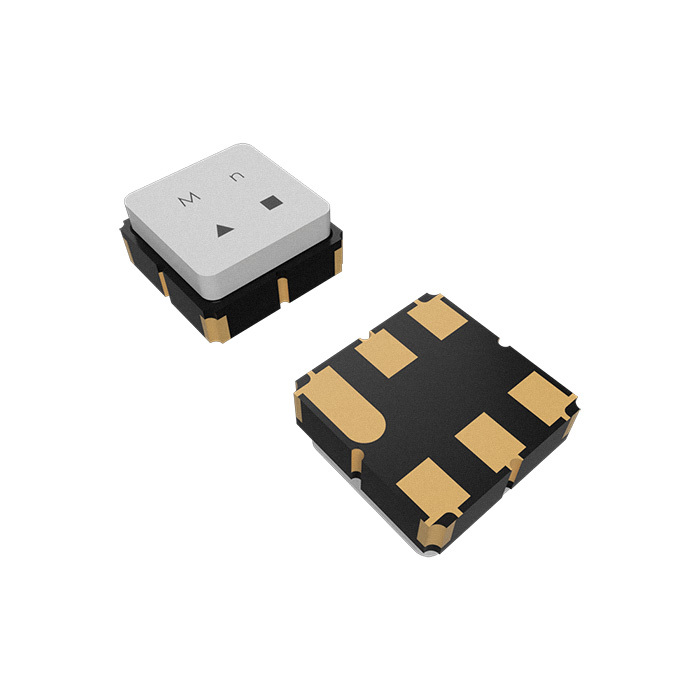

The AFII-TC-0015 is a temperature-compensated surface acoustic wave (TC-SAW) bandpass filter manufactured by Abracon LLC. It operates at a center frequency of 978 MHz with a bandwidth of 5 MHz and an impedance of 50 Ohms. The device features an insertion loss of 2 dB and is housed in a compact 6-pad SMD package measuring 3.0 x 3.0 x 1.4 mm. It supports an operating temperature range from -54°C to +85°C, ensuring stable signal conditioning for sensitive electronic applications.

Feature Summary

• Temperature-compensated SAW technology for enhanced stability
• Compact 6-pad surface mount design
• Optimized for high-frequency signal filtering

Applications

• Internet of Things (IoT)
• 5G infrastructure
• Artificial Intelligence hardware
• Autonomous vehicles

Procurement Notes

Verify the specific datasheet version and environmental compliance statements, such as CA Prop 65, directly from Abracon LLC or authorized distributors before procurement. Confirm that the 6-pad SMD footprint matches your PCB layout requirements. Ensure the operating temperature range of -54°C to +85°C aligns with your system's thermal environment. Cross-reference the 978 MHz center frequency and 5 MHz bandwidth against your circuit specifications to guarantee compatibility.

Selection Notes

Select this component when a precise 978 MHz bandpass response is required in space-constrained designs. The TC-SAW architecture provides superior temperature stability compared to standard SAW filters, making it suitable for environments with significant thermal fluctuations. Consider the 2 dB insertion loss and 50 Ohm impedance when designing matching networks. The 3.0 x 3.0 mm package size offers a balance between performance and board real estate efficiency for modern electronics.

Part Context

This part belongs to the Abracon AFII series of temperature-compensated SAW filters. These components are engineered for signal conditioning in high-frequency applications where frequency stability is critical. The series targets advanced technologies requiring reliable RF performance under varying thermal conditions, supporting the growing demand for robust wireless communication modules.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult Abracon LLC for direct equivalents or updated revisions within the AFII series.
