AFXP.125.07.0095A

Antennas RF Overview

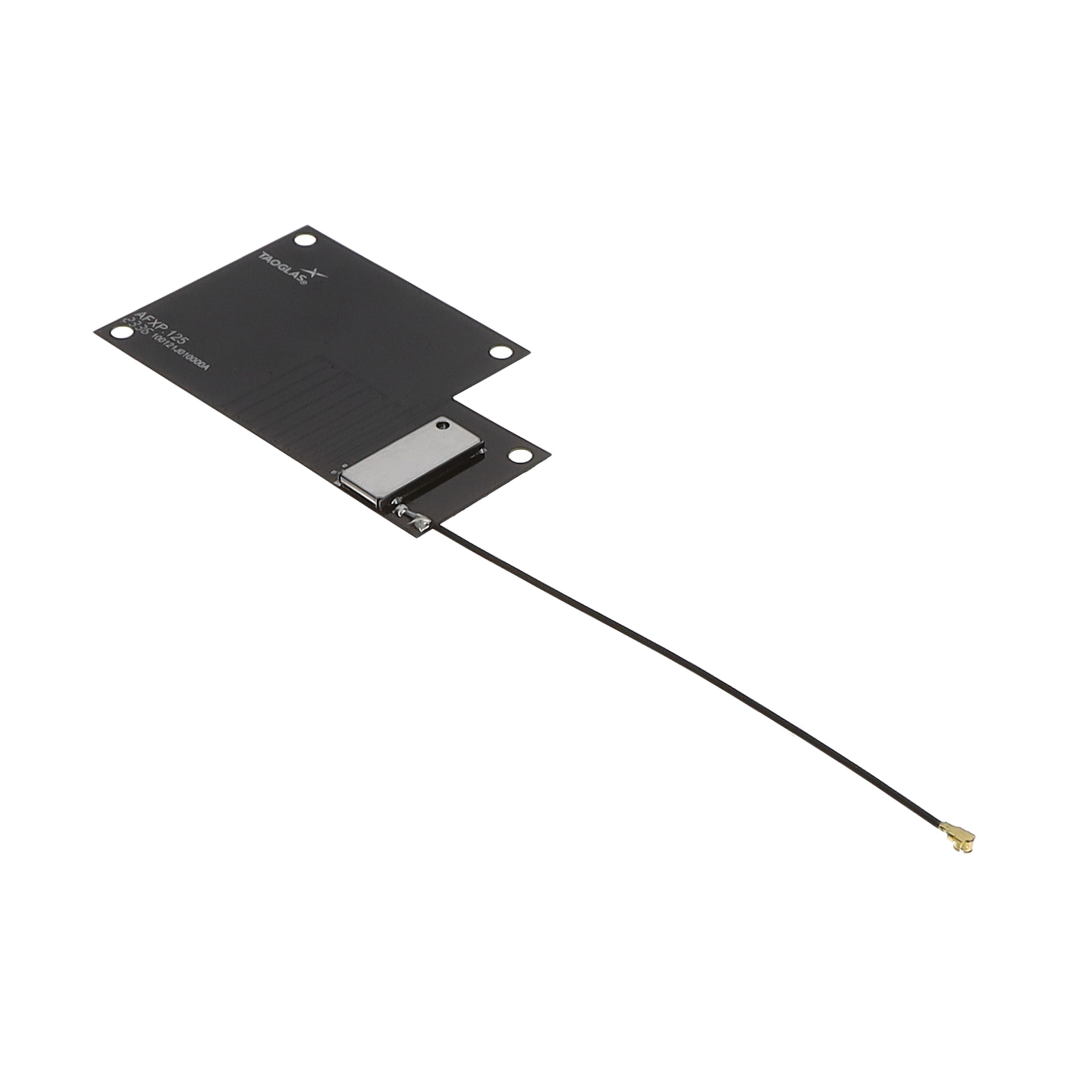

The Taoglas AFXP.125.07.0095A is an active multi-band GNSS flexible antenna designed for embedded applications. It operates across a frequency range of 1.17645 GHz to 1.603 GHz, supporting GPS, GLONASS, Galileo, BeiDou, IRNSS, QZSS, and SBAS protocols. The unit features a -0.13 dBi gain with a 50-ohm input impedance and includes an integrated Low Noise Amplifier (LNA). Mechanical specifications include a 95 mm cable length utilizing 1.13mm coaxial cabling terminated with a U.FL connector. Constructed from durable flexible polymer, it allows direct mounting to plastic housing shells or glass enclosures.

Antennas RF Feature Summary

• Supports multiple global navigation satellite systems including GPS, GLONASS, Galileo, BeiDou, IRNSS, QZSS, and SBAS within a single flexible form factor.
• Integrates a Low Noise Amplifier (LNA) to enhance signal reception performance for active GNSS applications.
• Utilizes a flexible polymer construction suitable for direct adhesive mounting on inner plastic housing shells or glass enclosures.

Antennas RF Applications

• Automotive telematics and navigation systems
• Embedded tracking devices requiring low-profile installation
• IoT modules needing multi-constellation support

Antennas RF Procurement Notes

Verify the specific connector type and cable length configuration against project requirements before ordering. Confirm that the operating temperature range and voltage supply for the integrated LNA align with the target system design. Ensure compatibility with the intended mounting surface material, as the flexible polymer design relies on adhesive attachment to plastic or glass substrates for optimal mechanical stability.

Antennas RF Selection Notes

Select this model when a low-profile, multi-band solution is required for space-constrained automotive or IoT designs. The flexible nature allows for conformal mounting on curved surfaces or inside enclosures where rigid antennas cannot fit. Consider the integrated LNA benefits for weak signal environments, while noting the requirement for appropriate power delivery to the amplifier circuitry within the host system.

Antennas RF Part Context

This component belongs to Taoglas's family of active multi-band GNSS flexible antennas. It is engineered specifically for applications demanding broad constellation support in compact, non-rigid forms. The design prioritizes ease of integration into vehicle interiors or electronic housings where traditional rigid ceramic patch antennas are impractical due to size or shape constraints.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Engineers should verify electrical compatibility, particularly regarding LNA biasing requirements and connector interface, if considering alternative multi-band flexible GNSS solutions from other manufacturers.
