AG2405CI

Overview

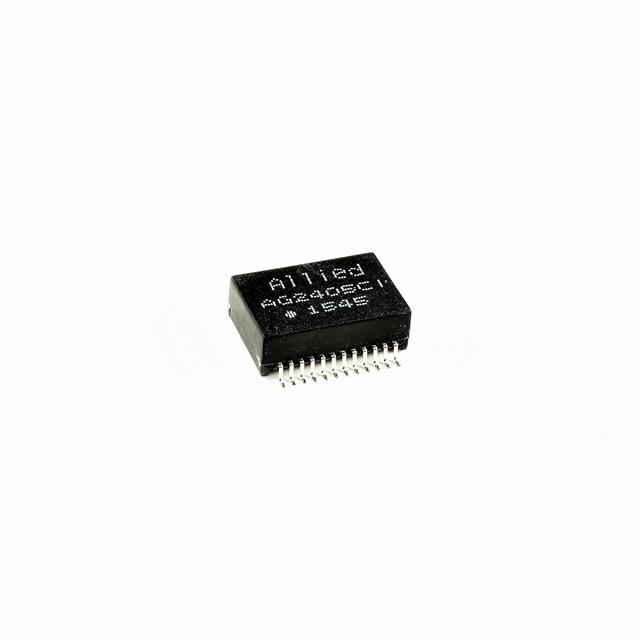

The AG2405CI is a single-port LAN filter module manufactured by Allied Components International, designed for 10/100/1000 Base-T Ethernet applications. It functions as a pulse transformer with a 1:1CT turns ratio and features a surface-mount package. The component includes an integrated common mode inductance of 350µH, providing necessary signal filtering and impedance matching for high-speed data transmission networks.

Feature Summary

• Supports 10/100/1000 Base-T Ethernet standards
• Integrated pulse transformer with 1:1CT configuration
• Surface-mount design for automated assembly

Applications

• Ethernet network interface cards
• LAN port protection circuits
• Industrial communication modules

Procurement Notes

Verify the specific suffix (e.g., CI vs CS) against the manufacturer's official datasheet to ensure correct pinout and RoHS compliance status. Confirm that the 350µH inductance value matches the system requirements for the intended 10/100/1000 Base-T application before procurement.

Selection Notes

Select this component when a compact, single-port solution is required for Gigabit Ethernet interfaces. Ensure the PCB layout supports the surface-mount footprint and that the 350µH common mode inductance aligns with the EMC requirements of the target device.

Part Context

This part belongs to the Allied Components International LAN filter module series, specifically engineered for Ethernet connectivity. It integrates magnetic components to facilitate signal integrity in high-speed digital communication environments.

Replacement Considerations

The AG2405CS is a related variant within the same product family. Verify pin compatibility and electrical specifications before substituting.
