AG2436CI

$4.68

Description：10/100/1000 Base T Single LAN
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)

SKU:ed5ce2d3a8f2 Category: Pulse Transformers Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：10/100/1000 Base T Single LAN
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)
Transformer Type：LAN 10/100/1000 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1:1CT
Mounting Type：Surface Mount
Size / Dimension：0.717" L x 0.478" W (18.20mm x 12.15mm)
Height - Seated (Max)：0.256" (6.50mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

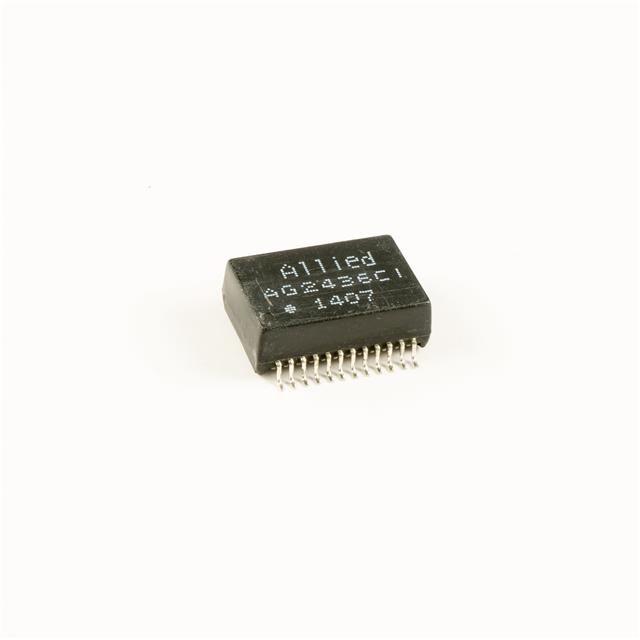

AG2436CI

Overview

The AG2436CI is a single-port LAN filter module manufactured by Allied Components International. It supports 10/100/1000 Base-T Ethernet standards for data transmission applications. The component provides electrical isolation with a specified voltage rating of 1500 kV, ensuring signal integrity and safety in network interfaces. It is designed as an active electronic component compliant with EU RoHS regulations and lead-free manufacturing processes.
