AG4802CI

Overview

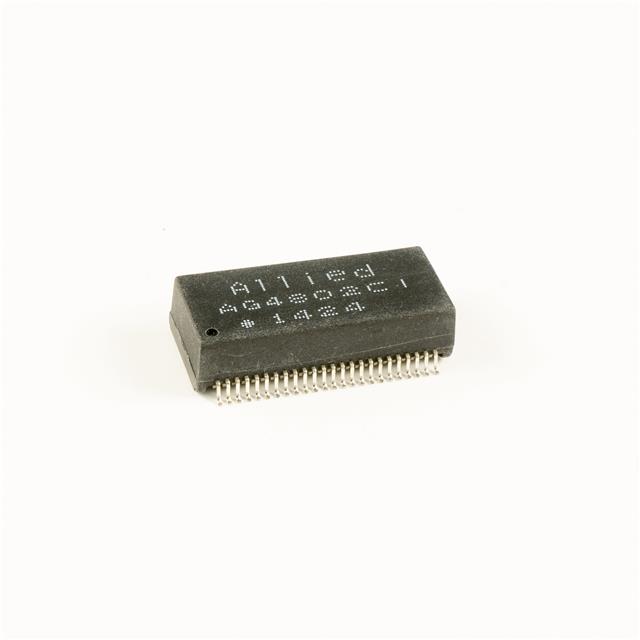

The AG4802CI is a dual port LAN filter module manufactured by Allied Components International. It supports 10/100/1000 Base T Ethernet standards and utilizes surface mount technology for integration into printed circuit boards. The component features a compact physical footprint measuring 1.094 inches in length and 0.480 inches in width, equivalent to 27.80mm by 12.20mm. This design facilitates efficient space utilization in high-density electronic assemblies while maintaining signal integrity for gigabit network applications.

Feature Summary

• Dual port configuration supporting simultaneous network connections
• Surface mount device construction for automated assembly compatibility
• Integrated LAN filtering capabilities for signal conditioning

Applications

• Gigabit Ethernet network interface cards
• Industrial communication equipment requiring dual port connectivity
• Consumer electronics with integrated networking capabilities

Procurement Notes

Verify the specific ordering suffix to ensure compliance with RoHS requirements and confirm the exact package dimensions match the target PCB layout. Cross-reference the manufacturer datasheet to validate the active product status and confirm that the dual port specification aligns with the intended network topology before finalizing procurement orders.

Selection Notes

Select this component when a dual-port solution is required for 10/100/1000 Base T applications. Ensure the surface mount form factor fits within the available board space constraints. Consider the thermal management requirements associated with the specified package size during the initial design phase to guarantee reliable operation under continuous network load conditions.

Part Context

This component belongs to the LAN filter module series produced by Allied Components International, a manufacturer specializing in magnetic components. The AG4802CI represents a specialized solution for network interface designs, distinct from single-port variants or quad-port configurations found in other product lines within the same manufacturer catalog.

Replacement Considerations

AG4802CS serves as a related variant within the same product family. Verify pinout compatibility and electrical specifications before substituting.
