AG4802CS

Overview

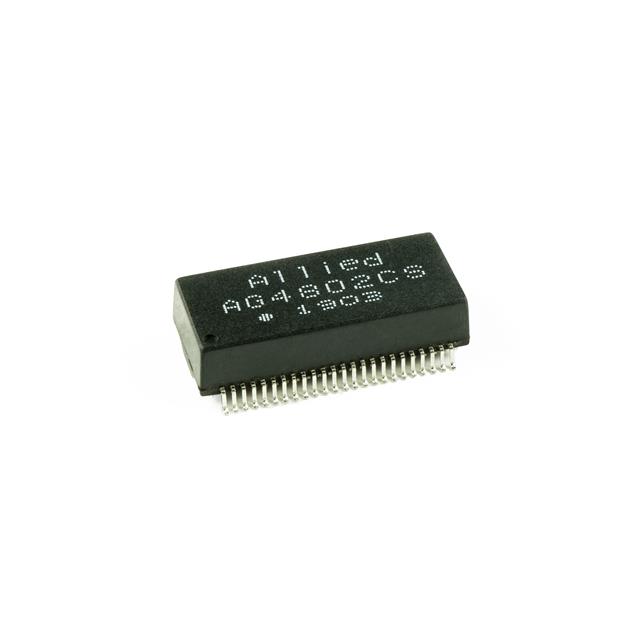

The AG4802CS is a dual-port LAN filter module manufactured by Allied Components International. It supports 10/100/1000 Base-T Ethernet standards and utilizes a surface-mount device (SMD) package design. The component integrates filtering capabilities for two network ports within a single compact module, ensuring signal integrity for high-speed data transmission applications.

Feature Summary

• Supports 10/100/1000 Base-T Ethernet standards
• Dual-port integrated LAN filtering solution
• Surface-mount device (SMD) package configuration

Applications

• Ethernet network interface circuits
• Computer peripheral connectivity modules
• Industrial communication equipment

Procurement Notes

Verify the specific datasheet version from Allied Components International to confirm pinout compatibility and electrical characteristics. Ensure the procurement channel provides documentation confirming RoHS compliance status as indicated in distributor listings. Cross-reference the part number suffix with official manufacturer records to validate the exact package variant before integration into designs.

Selection Notes

Select this module when a compact, dual-port filtering solution is required for Gigabit Ethernet interfaces. The SMD form factor suits automated assembly processes. Evaluate space constraints against the module's physical dimensions. Confirm that the integrated filtering meets the electromagnetic interference requirements of the target application without needing external discrete components.

Part Context

This component belongs to the LAN filter module series produced by Allied Components International. It is designed specifically for network interface applications requiring dual-port support. The product line focuses on providing integrated solutions for Ethernet connectivity, simplifying circuit board layout and reducing component count compared to discrete filtering approaches.
