AGDT-4691

Overview

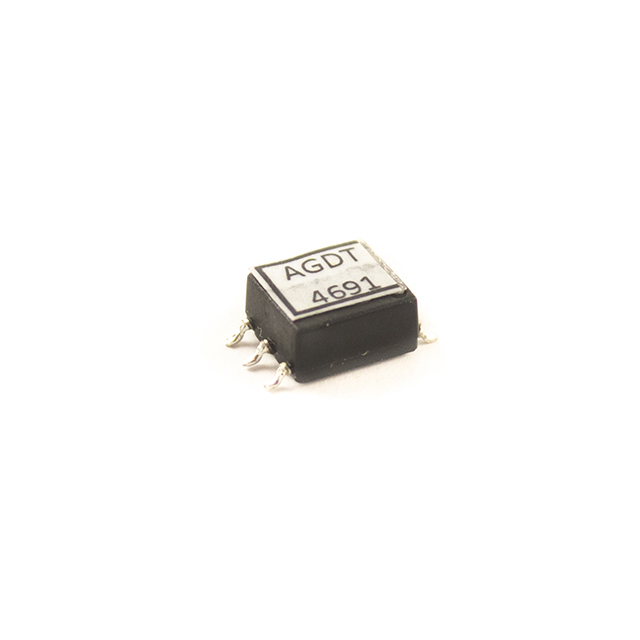

The AGDT-4691 is a gate drive pulse transformer manufactured by Allied Components International. It features an inductance of 388µH and a turns ratio of 1.7:1. The component utilizes a surface mount package with dimensions of 0.445 inches in length and 0.315 inches in width. The maximum height is 0.165 inches. It operates within a temperature range of -20°C to 125°C.

Feature Summary

• Designed specifically for gate drive applications
• Surface mount construction for automated assembly

Applications

• Gate drive circuits
• Power electronics isolation

Procurement Notes

Verify the manufacturer part number AGDT-4691 against official Allied Components International documentation. Confirm that the device matches the specified 388µH inductance and 1.7:1 turns ratio. Ensure the surface mount package dimensions align with design constraints. Check operating temperature specifications for environmental compatibility.

Selection Notes

Select this component when a dedicated gate drive pulse transformer is required. Consider the 388µH inductance value for circuit timing requirements. Evaluate the surface mount footprint for PCB layout compatibility. Verify thermal performance within the specified -20°C to 125°C range.

Part Context

Allied Components International specializes in magnetic products including inductors, ferrite beads, and custom magnetics. The AGDT-4691 belongs to their pulse transformer lineup, designed for high-frequency switching applications requiring electrical isolation between control and power stages.

Replacement Considerations

No public confirmed substitute part numbers are available for the AGDT-4691.
