AGDT-4692

$3.36

Description：475UH, GATE DRIVE TRANSFORMER
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)

SKU:3d60f73c4b4c Category: Pulse Transformers Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：475UH, GATE DRIVE TRANSFORMER
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)
Transformer Type：Gate Drive
Inductance：475µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1.1:1
Mounting Type：Surface Mount
Size / Dimension：0.445" L x 0.315" W (11.30mm x 8.00mm)
Height - Seated (Max)：0.165" (4.19mm)
Operating Temperature：-20°C ~ 125°C
Grade：-
Qualification：-

Download product information

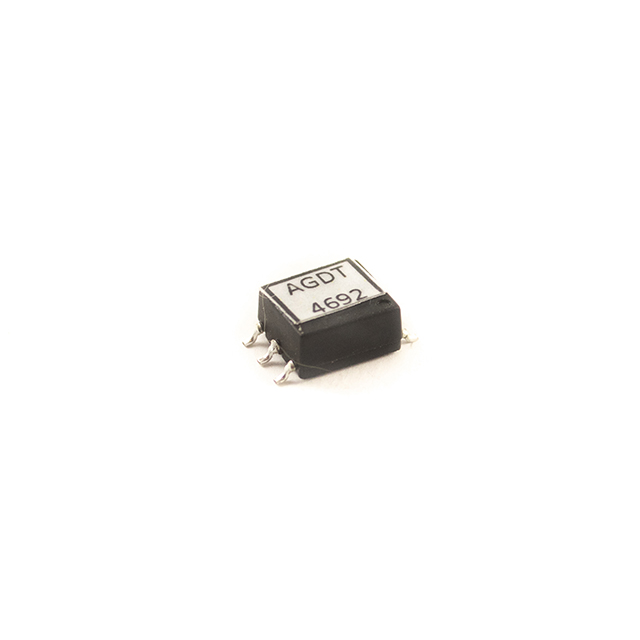

AGDT-4692

Overview

The AGDT-4692 is a gate drive transformer manufactured by Allied Components International. It features an inductance of 475µH and a turns ratio of 1.1:1. The component utilizes a surface mount device (SMD) package with six pins, specifically an SMD-8P configuration measuring 8x7.2mm. It employs an encased toroidal design suitable for low-profile applications. The operating temperature range extends from -20°C to +125°C.

Feature Summary

Encased toroidal design for structural integrity
Six-pin surface mount device configuration
Low profile construction for space-constrained layouts
Optimized for gate drive signal transmission

Applications

Gate drive signal isolation
Power electronics control circuits
Switching mode power supply interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to ensure correct packaging and pinout compatibility. Confirm that the selected variant matches the required inductance and voltage ratings for the target application. Cross-reference the package dimensions with the PCB footprint to prevent mechanical interference during assembly.

Selection Notes

Select this component when isolated gate driving is required within a low-profile form factor. The 475µH inductance supports standard switching frequencies while maintaining signal fidelity. Ensure the operating environment remains within the specified -20°C to +125°C thermal range to guarantee reliable performance over the product lifecycle.

Part Context

This part belongs to the AGDT series of gate drive transformers produced by Allied Components International. The series focuses on magnetic components designed for efficient signal transfer in high-frequency switching environments. The AGDT-4692 represents a specific configuration within this lineup, tailored for surface mount integration.

Replacement Considerations

Consult official substitution lists for equivalent gate drive transformers with matching inductance and package dimensions. Verify pin compatibility and electrical specifications before replacing the original component.
