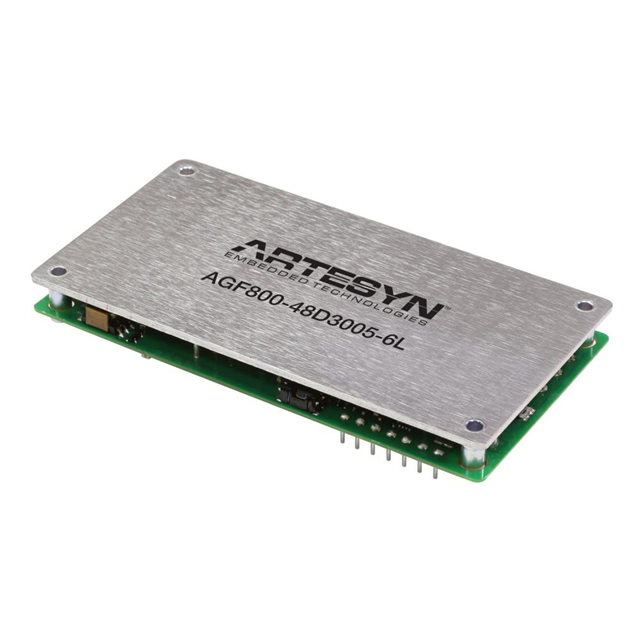

AGF800-48D3005-6L

AGF800-48D3005-6L is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is 800W, 36 - 75VIN, 30V/5V DUAL OU. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AGF800-48D3005-6L

• Description：800W, 36 - 75VIN, 30V/5V DUAL OU
• Series：AGF800 (800W)
• Mfr：ARTESYN / Advanced Energy
• Package：Box
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：30V
• Voltage - Output 2：5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：23.3A, 20A
• Power (Watts)：799 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, Remote Sense
• Operating Temperature：-45°C ~ 85°C
• Efficiency：93.50%
• Mounting Type：Through Hole
• Package / Case：Full Brick
• Size / Dimension：4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm)
• Supplier Device Package：Full Brick
• Control Features：Enable, Active Low
• Approval Agency：CE, cUL, TUV, UL
• Standard Number：60950-1; 62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for AGF800-48D3005-6L
