AGGBP.25B.07.0060A

Antennas RF Overview

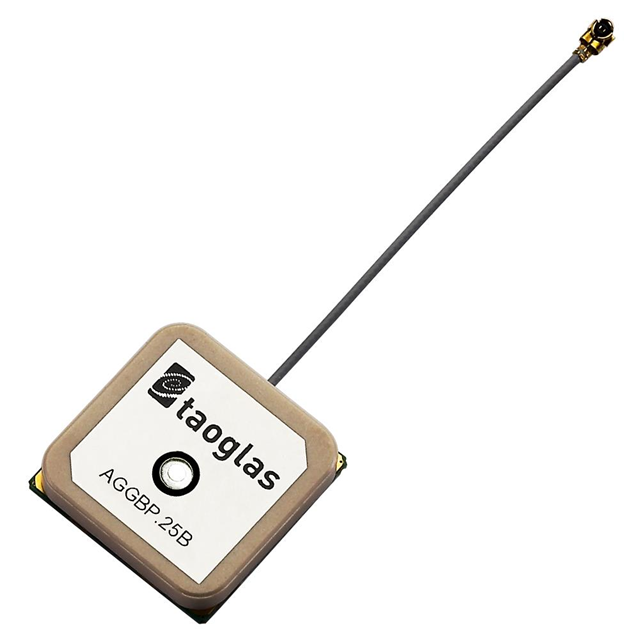

The AGGBP.25B.07.0060A is an active ceramic patch antenna designed for multi-constellation GNSS applications, including GPS, Galileo, GLONASS, and BeiDou. It features a U.FL (UMCC) or I-PEX MHF1 surface mount connector and operates within the L1 band frequencies of 1.561098 GHz, 1.57542 GHz, and 1.602 GHz. The component integrates a front-end SAW filter to reduce out-of-band noise and includes an internal Low Noise Amplifier (LNA). Measuring 25.1 mm in length, it supports right-hand circular polarization with a gain of 26 dBi and maintains a VSWR of 2.

Antennas RF Feature Summary

• Integrates a front-end SAW filter to suppress out-of-band interference
• Supports multi-constellation navigation systems including GPS, Galileo, GLONASS, and BeiDou
• Features internal Low Noise Amplifier (LNA) for signal enhancement

Antennas RF Applications

• Satellite navigation receivers
• Multi-constellation GNSS modules
• Internal positioning devices requiring compact form factors

Antennas RF Procurement Notes

Verify that the specific ordering suffix matches the required cable length and connector type configuration. Confirm RoHS3 compliance status and MSL level 1 handling requirements during storage and assembly. Ensure the selected variant aligns with the intended frequency bands and polarization specifications for the target application.

Antennas RF Selection Notes

Select this model when a compact internal solution with integrated filtering is required for multi-band GNSS reception. Consider the 25.1 mm physical dimensions and U.FL/I-PEX MHF1 interface compatibility with the host PCB layout. Evaluate the 26 dBi gain and SAW filter integration against system sensitivity requirements.

Antennas RF Part Context

This component belongs to the Taoglas AGGBP.25 series of active GNSS antennas. It is engineered for space-constrained applications where high sensitivity and interference rejection are critical. The series typically offers various connector options and cable lengths to accommodate different device integration needs.

Antennas RF Replacement Considerations

Cross-reference with other models in the AGGBP.25 family for alternative connector types or cable lengths. Verify functional equivalence regarding frequency coverage and gain specifications before substitution.
