AGGBP.SL.18A.07.0060A

Antennas RF Overview

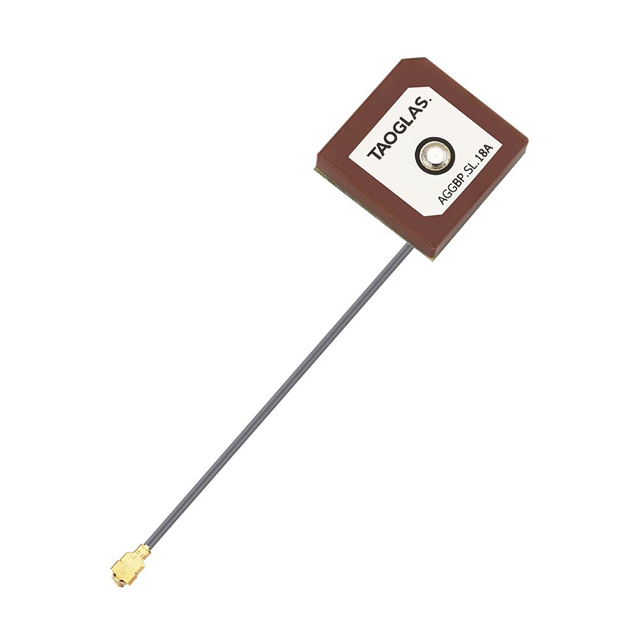

The AGGBP.SL.18A.07.0060A is an active ceramic patch antenna designed for multi-constellation GNSS applications, supporting GPS, GLONASS, Galileo, and BeiDou systems. It operates at L1 and L2 frequencies with a 13.0 dB Low Noise Amplifier (LNA) gain and includes Surface Acoustic Wave (SAW) filtering for enhanced out-of-band rejection. The component features a low-profile design with a 60 mm cable length and utilizes an I-PEX MHF® U.FL connector for surface mount integration.

Antennas RF Feature Summary

• Integrated 13.0 dB LNA with SAW filtering for superior signal integrity
• Multi-constellation support including GPS, GLONASS, Galileo, and BeiDou
• Low-profile ceramic patch construction optimized for space-constrained designs

Antennas RF Applications

• Wearable devices requiring compact GNSS positioning
• Connected health monitoring equipment
• Transportation tracking systems

Antennas RF Procurement Notes

Verify the specific connector type and cable length against the latest manufacturer datasheet to ensure compatibility with the target PCB footprint and system enclosure constraints. Confirm RoHS compliance status and check for any recent Product Change Notifications or End-of-Life announcements from Taoglas Limited prior to finalizing procurement plans.

Antennas RF Selection Notes

Select this model when multi-constellation GNSS reception is required in a low-profile form factor. The integrated LNA and SAW filter simplify RF front-end design by providing necessary gain and interference rejection within a single module. Ensure the host device supports the U.FL interface and accommodates the 60 mm cable routing requirements.

Antennas RF Part Context

This component belongs to the AGGBP.SL series of active GNSS antennas from Taoglas Limited. It represents a specialized solution for internal installation in portable electronics where external antennas are impractical. The series focuses on delivering high-performance satellite navigation capabilities while maintaining minimal physical profile and power consumption standards.

Antennas RF Replacement Considerations

Consult official Taoglas documentation for direct substitutes. Verify that alternative models maintain identical L1/L2 frequency coverage, LNA gain specifications, and U.FL connector compatibility to ensure seamless integration without redesigning the RF circuitry.
