AGGBP.SL.35A.07.0060A

Antennas RF Overview

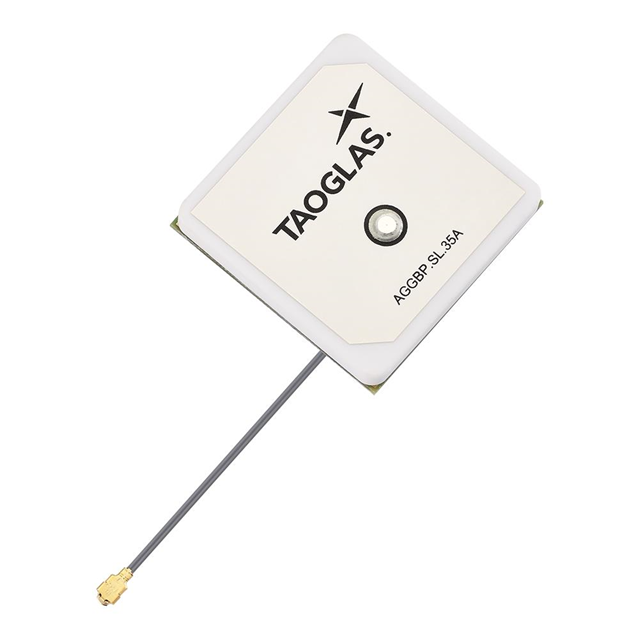

The AGGBP.SL.35A.07.0060A is a 35x35 mm single-band active patch antenna module designed for GNSS applications. It integrates a Low Noise Amplifier (LNA) with 14.5 dB gain and a front-end SAW filter for superior out-of-band rejection. The unit operates within the L1 band, covering GPS, GLONASS, GALILEO, and BeiDou frequencies from 1575.42 MHz to 1602 MHz. It features a U.FL connector and functions reliably across a temperature range of -40°C to +85°C.

Antennas RF Feature Summary

• Integrated SAW filter provides excellent out-of-band interference rejection
• High-gain LNA ensures strong signal reception for precise positioning
• Compact surface-mount design suitable for space-constrained internal installations

Antennas RF Applications

• GPS navigation systems
• GLONASS tracking devices
• GALILEO receiver modules
• BeiDou positioning units

Antennas RF Procurement Notes

Verify the specific suffix configuration against the manufacturer's current datasheet to ensure compatibility with the intended RF interface and mechanical footprint. Confirm that the integrated LNA power requirements align with the host system's voltage supply capabilities before finalizing the procurement order.

Antennas RF Selection Notes

Select this component when high sensitivity and robust interference rejection are required for multi-constellation GNSS receivers. The integrated SAW filter makes it suitable for environments with significant RF noise. Ensure the host PCB layout accommodates the 35x35 mm form factor and provides adequate grounding for optimal radiation pattern performance.

Antennas RF Part Context

This model belongs to Taoglas' AGGBP.SL series of active patch antennas. These modules are engineered for internal integration in mobile and industrial electronics requiring reliable satellite navigation. The series emphasizes compactness and high performance through integrated frontend filtering and amplification stages.

Antennas RF Replacement Considerations

Check for the AGGBP.SLS.35A.07.0060A variant, which offers similar coverage but may differ in LNA gain specifications. Verify connector type and mounting dimensions to ensure mechanical interchangeability without redesigning the host enclosure.
