AGGBP.SLS.25A.07.0060A

Antennas RF Overview

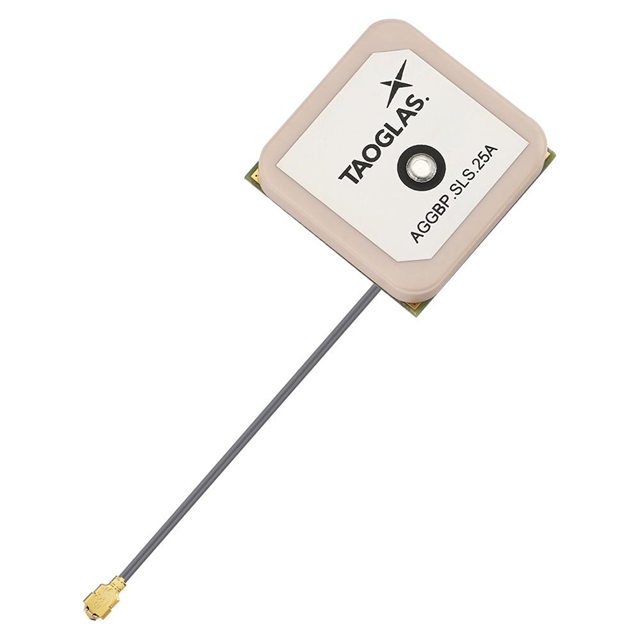

The Taoglas AGGBP.SLS.25A.07.0060A is a 25mm active GNSS patch antenna supporting GPS, GLONASS, Galileo, and BeiDou constellations. It integrates a ceramic patch element with front-end SAW filters for out-of-band noise reduction and an LNA providing 13.0 dB gain. The module features an I-PEX MHF IU.FL connector and a 60 mm cable length. Operating within a -40°C to 85°C range, it is designed for embedded navigation applications requiring high signal integrity.

Antennas RF Feature Summary

• Integrated SAW/LNA/SAW architecture for enhanced signal processing
• Multi-constellation support including GPS, GLONASS, Galileo, and BeiDou
• Compact 25mm embedded design suitable for space-constrained devices

Antennas RF Applications

• Navigation systems
• Wearable technology
• Transportation tracking

Antennas RF Procurement Notes

Verify the specific model suffix against official Taoglas documentation to ensure compatibility with required connector types and cable lengths. Confirm current availability status as component lifecycles may change. Cross-reference datasheet specifications for environmental ratings and electrical performance before integration into final designs.

Antennas RF Selection Notes

Select this model when multi-constellation GNSS reception is required in compact form factors. The integrated SAW filters provide necessary out-of-band rejection for noisy environments. Ensure the U.FL connector interface matches the host PCB layout constraints and verify that the 60 mm cable length accommodates the system's mechanical routing requirements.

Antennas RF Part Context

This component belongs to the Taoglas AGGBP.SLx series of active GNSS patch antennas. These modules are engineered for internal embedding in electronic devices. The series emphasizes high performance through integrated low-noise amplification and filtering technologies tailored for global navigation satellite systems.

Antennas RF Replacement Considerations

Consult official Taoglas substitution guides for verified alternatives. Generic cross-references may not match the specific SAW/LNA configuration or connector type.
