AGGBP.SLS.35A.07.0060A

Antennas RF Overview

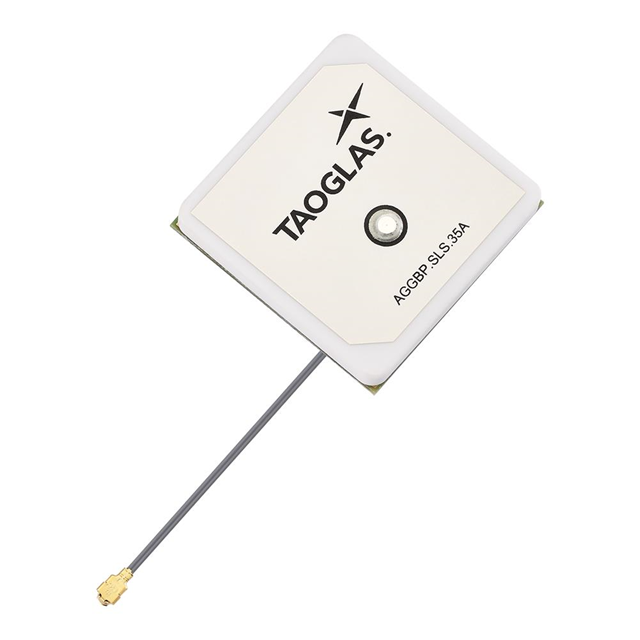

The AGGBP.SLS.35A.07.0060A is an active GNSS patch antenna designed for multi-constellation satellite navigation systems. It supports GPS, GLONASS, Galileo, and BeiDou frequencies within the L1 band range of 1575.42 MHz to 1602 MHz. The component integrates a surface acoustic wave (SAW) filter, a low-noise amplifier (LNA), and a second SAW filter to ensure signal integrity. It provides a typical LNA gain of 13.0 dB with excellent out-of-band rejection capabilities. The antenna features a compact 35mm form factor and utilizes an I-PEX MHF connector interface for secure attachment.

Antennas RF Feature Summary

• Integrated active circuitry comprising SAW filters and a low-noise amplifier for enhanced signal processing
• Multi-constellation support enabling reception of GPS, GLONASS, Galileo, and BeiDou signals
• High out-of-band rejection characteristics to minimize interference from adjacent frequency bands

Antennas RF Applications

• Global navigation satellite system receivers requiring high sensitivity
• Automotive telematics and navigation units
• Portable tracking devices and asset management systems
• Marine navigation equipment

Antennas RF Procurement Notes

Verify the specific connector type and cable assembly requirements before ordering, as the antenna uses an I-PEX MHF interface that requires compatible mating connectors. Confirm the presence of the integrated LNA and SAW filters in the final design schematic to ensure impedance matching and power supply considerations are addressed correctly for the active components.

Antennas RF Selection Notes

Select this model when multi-constellation support is required alongside high gain performance in a compact footprint. The integrated SAW/LNA/SAW architecture simplifies RF front-end design by providing necessary filtering and amplification internally. Ensure the application environment allows for the physical dimensions of the 35mm patch and accommodates the DC power requirements for the active elements.

Antennas RF Part Context

This part belongs to Taoglas' active GNSS antenna portfolio, specifically engineered for internal installation in space-constrained electronic devices. The SLS series denotes a standard size patch configuration optimized for broad compatibility with various receiver modules. It represents a solution for applications demanding robust satellite signal acquisition across multiple global navigation systems without external discrete filtering components.

Antennas RF Replacement Considerations

No direct public substitute part numbers are confirmed for this specific active configuration. Replacement requires evaluating alternative active GNSS antennas with similar L1 band coverage, 13 dB gain, and I-PEX connectivity while ensuring equivalent SAW filter integration and mechanical mounting constraints.
