AGGP.25F.07.0060A

Antennas RF Overview

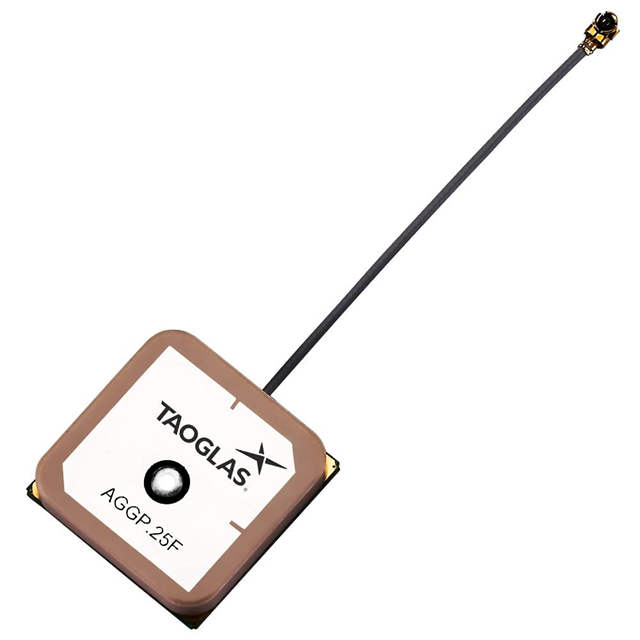

The AGGP.25F.07.0060A is a two-stage active patch antenna module designed for GNSS applications, supporting GPS, GLONASS, and Galileo systems. It operates within the frequency range of 1.574 GHz to 1.61 GHz. The component features a ceramic patch construction with an integrated low-noise amplifier (LNA) to enhance signal reception sensitivity. It utilizes a U.FL (I-PEX MHF I) connector interface and measures 25.1 mm in length, 25 mm in width, and 7.4 mm in height. The unit maintains a standard 50 Ohm impedance and is rated for operation up to +85°C.

Antennas RF Feature Summary

• Two-stage active design integrating a ceramic patch element with a built-in low-noise amplifier for improved signal acquisition.
• Multi-system support capability covering GPS, GLONASS, and Galileo navigation constellations simultaneously.
• Compact surface-mount form factor engineered for integration into space-constrained mobile and embedded devices.

Antennas RF Applications

• Global Positioning System (GPS) receivers
• GLONASS navigation modules
• Galileo satellite positioning devices
• Mobile handheld terminals requiring high-sensitivity GNSS

Antennas RF Procurement Notes

Verify the specific connector type and cable assembly compatibility before ordering, as the U.FL interface requires matching mating connectors. Confirm that the active LNA power supply requirements align with the target system voltage levels. Check current availability status as electronic components may undergo lifecycle changes or obsolescence notices from the manufacturer.

Antennas RF Selection Notes

Select this model when multi-band GNSS reception is required in a compact footprint. Ensure the application environment supports the thermal limits specified for active components. Consider the need for external DC biasing circuitry to power the internal amplifier stage during system design.

Antennas RF Part Context

This part belongs to Taoglas' active antenna portfolio, specifically targeting global navigation satellite systems. It represents a specialized solution for applications demanding robust positioning capabilities across multiple international standards, distinguishing it from passive ceramic antennas by its integrated amplification stage.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Evaluate alternative Taoglas active GNSS modules based on mechanical dimensions and electrical specifications if this specific variant is unavailable.
