AGGP.35F.07.0060A

Antennas RF Overview

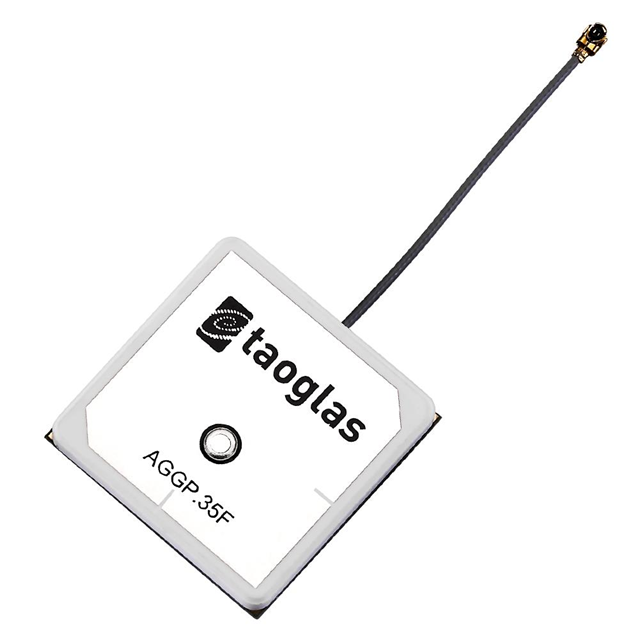

The AGGP.35F.07.0060A is a two-stage active patch antenna designed for GPS, GLONASS, and Galileo navigation systems. It features a ceramic patch construction with dimensions of 35x35x6.9mm and includes a 60mm cable terminated with an I-PEX MHF IU.FL connector. The device integrates a low noise amplifier and a front-end SAW filter to mitigate out-of-band interference from cellular transceivers. Operating within the L1 band, it provides omni-directional coverage suitable for embedded applications requiring high sensitivity and signal integrity in complex RF environments.

Antennas RF Feature Summary

• Integrates a two-stage Low Noise Amplifier (LNA) for enhanced signal amplification
• Includes a front-end Surface Acoustic Wave (SAW) filter to reduce out-of-band noise
• Utilizes double resonance design for wide-band operation across multiple GNSS frequencies

Antennas RF Applications

• Embedded GPS receivers
• GLONASS tracking modules
• Galileo navigation devices
• Multi-band GNSS receivers

Antennas RF Procurement Notes

Verify the specific suffix codes against the manufacturer's official documentation to ensure correct cable length and connector type. Confirm that the required frequency bands align with the L1 operational range specified in the datasheet. Check for any recent packaging changes or environmental compliance updates such as RoHS status before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when compact size and high sensitivity are critical for embedded navigation applications. The integrated SAW filter makes it suitable for environments with significant cellular interference. Ensure the host system supports the U.FL/I-PEX MHF interface and can accommodate the 60mm cable length constraint while maintaining signal integrity.

Antennas RF Part Context

This component belongs to the AGGP series of multi-band active patch antennas from Taoglas. It shares design similarities with the AGGP.25 model but offers larger physical dimensions for potentially improved performance characteristics. The series is engineered for modern navigation standards, providing a robust solution for integrating GNSS capabilities into space-constrained electronic devices.

Antennas RF Replacement Considerations

The AGGP.25 series serves as a smaller alternative within the same product family. Verify dimensional constraints and connector compatibility when considering substitutes. Ensure that any replacement maintains the two-stage LNA architecture and SAW filter integration to preserve noise rejection capabilities.
