Product Detailed Parameters
- Description：LINE FILTER 250VAC 16A CHASS MNT
- Series：AGM
- Mfr：Ohmite
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：16 A
- Frequency - Operating：50/60Hz
- Applications：Medical
- Approval Agency：CE, UR
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

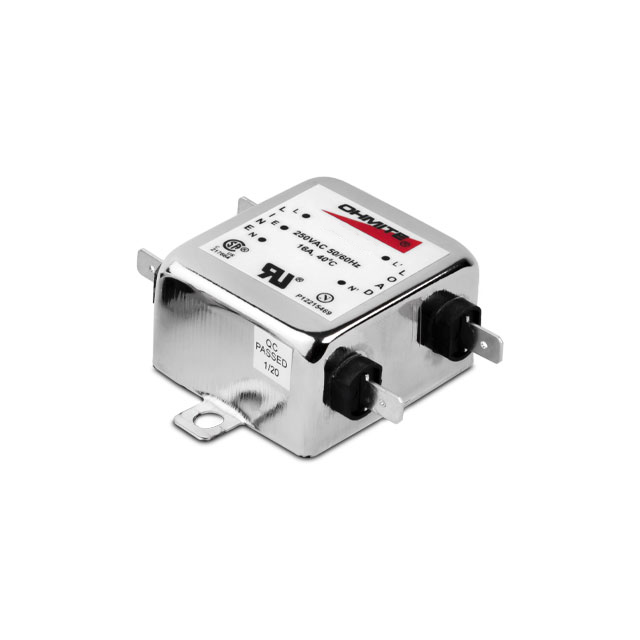

The AGM-16 is a single-phase EMC/EMI line filter module manufactured by Ohmite. It is designed for power line applications with a current handling capacity of 16 A and a maximum voltage rating of 250 VAC at 50/60 Hz. The unit features a single-stage filtering configuration and utilizes quick connect terminals for circuit integration. Mounting is specified as chassis mount, ensuring secure installation in industrial or medical equipment enclosures.
Feature Summary
- Single-stage electromagnetic interference suppression for power lines
- Quick connect terminal interface for simplified wiring
- Chassis mount construction for stable physical installation
Applications
- Power line filtering in medical devices
- Electromagnetic disturbance suppression in industrial equipment
- Single-phase AC power input protection
Procurement Notes
Verify the specific part number against official Ohmite documentation to confirm electrical ratings and terminal type. Ensure compatibility with chassis mounting requirements and input voltage specifications before integration. Cross-reference datasheet details for environmental operating conditions and certification status.
Selection Notes
Select this component based on the requirement for a 16 A rated single-phase EMI filter. Confirm that the 250 VAC rating aligns with the system's supply voltage. Evaluate the chassis mount form factor and quick connect terminals against available board space and wiring constraints.
Part Context
This component belongs to the AGM series of medical filters produced by Ohmite Manufacturing Co. The series is engineered to suppress undesirable electrical disturbances in power lines. Ohmite specializes in power resistors and related passive components for industrial and medical applications.
