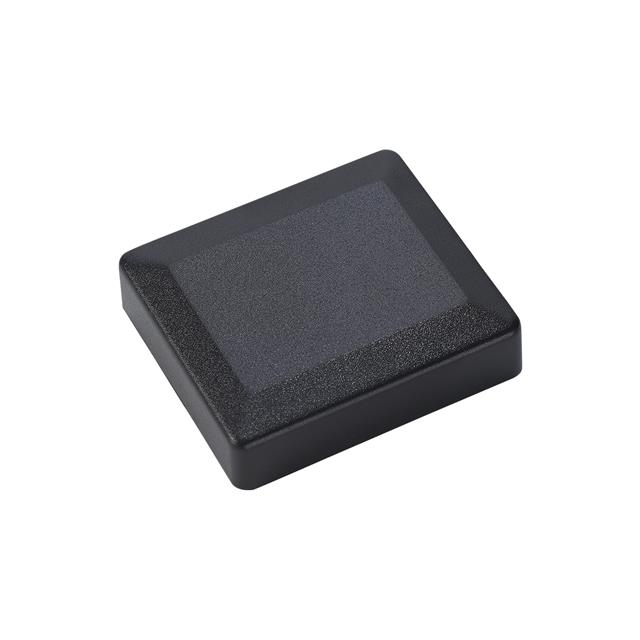

AGPS26GMMSMA is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol PCTEL. Its product description is RF ANT 1.575GHZ MOD SMA M GLASS. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AGPS26GMMSMA
- Description：RF ANT 1.575GHZ MOD SMA M GLASS
- Series：-
- Mfr：Amphenol PCTEL
- Package：Bulk
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.575GHz
- Frequency Range：1.574GHz ~ 1.576GHz
- Antenna Type：Module
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：3dBic
- Features：Cable - 5.1816m, LNA, Filter
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Glass
- Height (Max)：0.587" (14.90mm)
- Applications：GNSS, GPS
- Power - Max：-
Antennas RF datasheet and documents for AGPS26GMMSMA
Antennas RF Overview
The AGPS26GMMSMA is a GNSS antenna module manufactured by Amphenol PCTEL, designed for GPS applications. It operates within the UHF frequency group, specifically covering the range of 1.574GHz to 1.576GHz. The component features an SMA male termination and utilizes a glass mounting type. Key specifications include a gain of 26 dB and a maximum height of 0.587 inches (14.90mm). The assembly incorporates a cable with a length of 5.1816 meters, an integrated Low Noise Amplifier (LNA), and a filter to enhance signal performance.
Antennas RF Feature Summary
- Integrated Low Noise Amplifier and filter for signal enhancement
- Designed for glass surface mounting applications
- Includes extended cable assembly with LNA
Antennas RF Applications
- GNSS positioning systems
- GPS navigation modules
- Vehicle tracking devices
Antennas RF Procurement Notes
Verify the specific part number suffix against official Amphenol PCTEL documentation to ensure compatibility with required cable lengths and connector types. Confirm that the SMA male termination matches the receiving equipment interface. Check current availability status as manufacturing lead times may vary. Ensure the glass mounting specification aligns with the intended installation environment and structural requirements.
Antennas RF Selection Notes
Select this model when a high-gain GNSS solution with integrated amplification is required for GPS bands. The 26 dB gain supports long-range reception in challenging environments. The included LNA and filter simplify system design by reducing external component needs. Verify that the SMA male connector and 5.1816-meter cable length fit the physical constraints of the target device enclosure.
Antennas RF Part Context
This component belongs to the RF antenna category, specifically under GNSS antennas for outdoor or vehicle use. It is part of Amphenol PCTEL's portfolio of navigation solutions. The product is distinct from general cellular or Wi-Fi antennas due to its specialized UHF frequency focus and high-gain characteristics tailored for satellite signal acquisition.
Antennas RF Replacement Considerations
No direct public substitute part numbers are confirmed in the provided documentation. Consult official Amphenol PCTEL resources for equivalent models with matching gain, frequency, and connector specifications.
