AGPS26MMMC

Antennas RF Overview

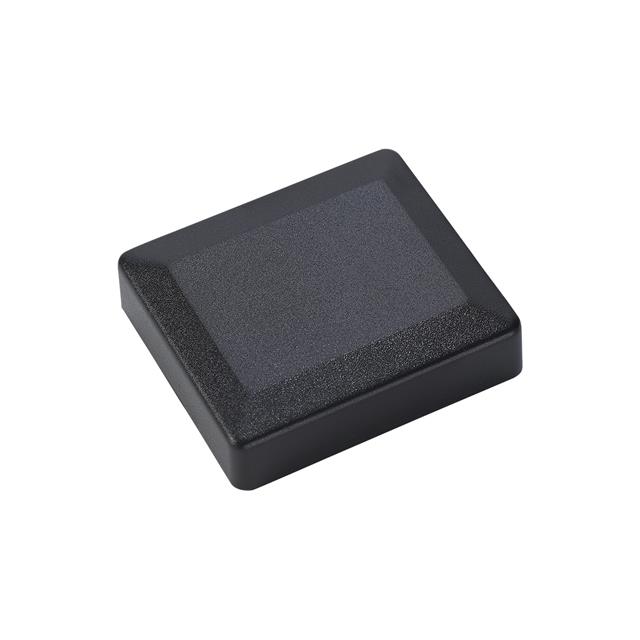

The AGPS26MMMC is an active GPS module antenna manufactured by Amphenol PCTEL. It operates at a center frequency of 1575.42 MHz, supporting the L1 band for Global Positioning System applications. The device provides a gain of 26 dB and requires a DC supply voltage between 3 and 5 volts to function. It features a TNC male connector interface and utilizes RG174 coaxial cable with a length of 15 feet. The antenna employs a magnetic mount design with a square black radome for secure attachment to ferrous surfaces.

Antennas RF Feature Summary

• Active amplification technology integrated within the module structure
• Magnetic mounting system for rapid installation on metal surfaces
• Pre-terminated 15-foot RG174 cable assembly with fixed TNC connector

Antennas RF Applications

• Global Positioning System navigation receivers
• Mobile vehicle tracking units
• Maritime navigation equipment
• Avionics positioning modules

Antennas RF Procurement Notes

Verify that the procurement specification matches the exact part number AGPS26MMMC from Amphenol PCTEL. Confirm compatibility with the host system's TNC female port and ensure the power supply range supports the 3 to 5 volt requirement. Check for any specific environmental sealing needs if the application involves exposure to moisture or harsh conditions beyond standard operational limits.

Antennas RF Selection Notes

Select this component when a high-gain active GPS solution is required for mobile platforms. The 26 dB gain ensures reliable signal acquisition in challenging environments. The magnetic mount offers flexibility for temporary or semi-permanent installations without drilling. Ensure the host device can provide the necessary DC bias voltage through the coaxial line or external power source as specified in the technical documentation.

Antennas RF Part Context

This model belongs to the PCTEL Maxrad product line, which specializes in RF antennas for navigation and communication systems. The AGPS series focuses on providing robust GPS reception capabilities for mobile and industrial applications. Amphenol PCTEL designs these components to meet rigorous performance standards for reliability in dynamic operating conditions.

Antennas RF Replacement Considerations

Cross-reference with other active GPS antennas featuring TNC connectors and similar gain specifications. Verify that substitute models support the same 1575.42 MHz frequency and compatible voltage requirements. Ensure physical dimensions and mounting styles align with existing installation constraints.
