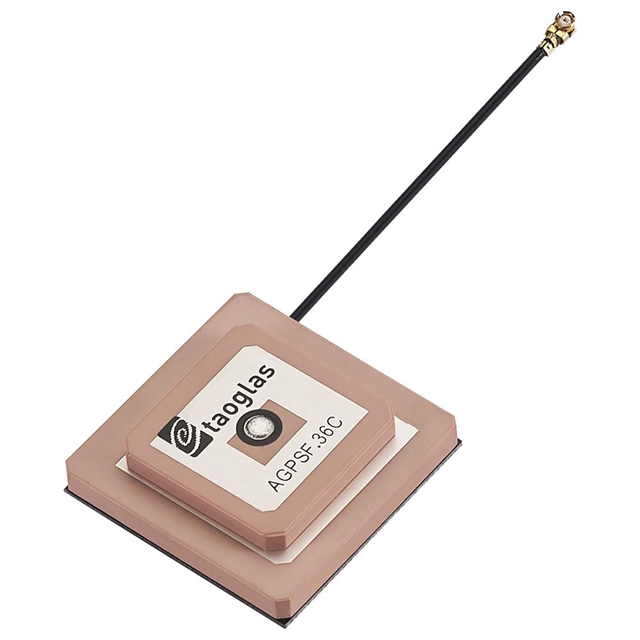

AGPSF.36C.07.0100C

AGPSF.36C.07.0100C is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is ACTIVE GPS L1/L2 LOW PROFILE STA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AGPSF.36C.07.0100C

• Description：ACTIVE GPS L1/L2 LOW PROFILE STA
• Series：-
• Mfr：Taoglas Limited
• Package：Tray
• RF Family/Standard：Navigation
• Frequency Group：UHF (1GHz ~ 2GHz)
• Frequency (Center/Band)：1.2267GHz, 1.575GHz
• Frequency Range：1.2257GHz ~ 1.2277GHz, 1.574GHz ~ 1.576GHz
• Antenna Type：Ceramic Patch
• Number of Bands：2
• VSWR：-
• Return Loss：-10dB, -10dB
• Gain：2.73dBi, 3.57dBi
• Features：Cable - 100mm, LNA, Filter
• Termination：U.FL (UMCC), I-PEX MHF1
• Ingress Protection：-
• Grade：-
• Qualification：-
• Mounting Type：Surface Mount
• Height (Max)：0.433" (11.00mm)
• Applications：GPS
• Power - Max：-

Antennas RF datasheet and documents for AGPSF.36C.07.0100C
