AGPSF.36G.07.0100C is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is GNSS L1/L2 LOW PROFILE STACKED P. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AGPSF.36G.07.0100C
- Description：GNSS L1/L2 LOW PROFILE STACKED P
- Series：-
- Mfr：Taoglas Limited
- Package：Bulk
- RF Family/Standard：Navigation
- Frequency Group：Wide Band
- Frequency (Center/Band)：1.22GHz, 1.24GHz, 1.56GHz, 1.575GHz, 1.576GHz, 1.6GHz
- Frequency Range：1.21GHz ~ 1.24GHz, 1.24GHz ~ 1.25GHz, 1.559GHz ~ 1.56GHz, 1.563GHz ~ 1.59GHz, 1.564GHz ~ 1.61GHz, 1.59GHz ~ 1.61GHz
- Antenna Type：Ceramic Patch
- Number of Bands：6
- VSWR：-
- Return Loss：-10dB
- Gain：4.2dBi, 3.2dBi, 0.9dBi, 3.7dBi, 3.7dBi, 0.8dBi
- Features：Cable - 100mm, LNA, Filter
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.433" (11.00mm)
- Applications：Beidou, Galileo, GLONASS, GPS
- Power - Max：-
Antennas RF datasheet and documents for AGPSF.36G.07.0100C
Antennas RF Overview

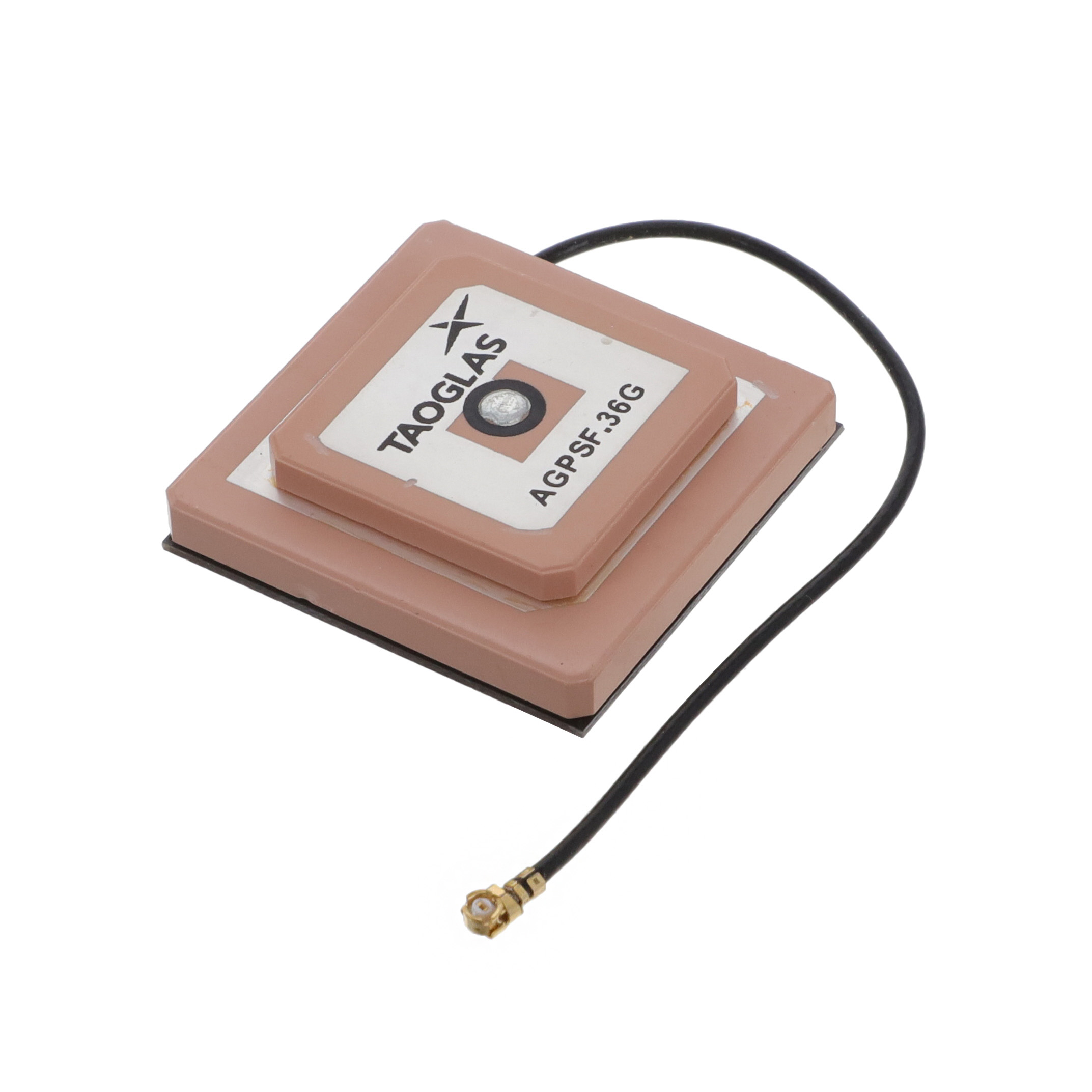

The Taoglas AGPSF.36G.07.0100C is an embedded active GNSS antenna utilizing a low-profile stacked patch design. It supports dual-band L1 and L2 frequencies for GPS and GLONASS systems. The component features a 50-ohm impedance and includes an integrated Low Noise Amplifier (LNA). It connects via a 100mm cable terminated with an I-PEX MHF1 (U.FL) connector. The unit is designed for surface mount installation on printed circuit boards.
Antennas RF Feature Summary
- Dual-band L1/L2 reception capability
- Integrated Low Noise Amplifier
- Low-profile stacked patch construction
Antennas RF Applications
- GPS navigation modules
- GLONASS positioning devices
- Embedded tracking hardware
Antennas RF Procurement Notes
Verify the specific connector type and cable length against project requirements. Confirm that the host PCB layout accommodates the embedded form factor. Ensure the power supply matches the LNA specifications found in the official datasheet. Cross-reference the exact suffix to confirm frequency band support.
Antennas RF Selection Notes
Select this model when high-precision dual-band GNSS performance is required within constrained vertical space. The integrated LNA simplifies RF front-end design by reducing external component count. Verify compatibility with the target application's operating temperature range and mechanical mounting constraints before finalizing the design.
Antennas RF Part Context
This component belongs to the Taoglas embedded active antenna series, specifically engineered for compact electronic devices. It represents a solution for applications requiring robust satellite signal acquisition without protruding from the device chassis. The stacked patch technology enables multi-band operation in a minimal footprint.
Antennas RF Replacement Considerations
Consult the manufacturer for direct equivalents. Verify that any substitute maintains the same L1/L2 frequency coverage and connector interface. Ensure mechanical dimensions and electrical characteristics align with the original design specifications.
