AGPSHP35MMMSMA

Antennas RF Overview

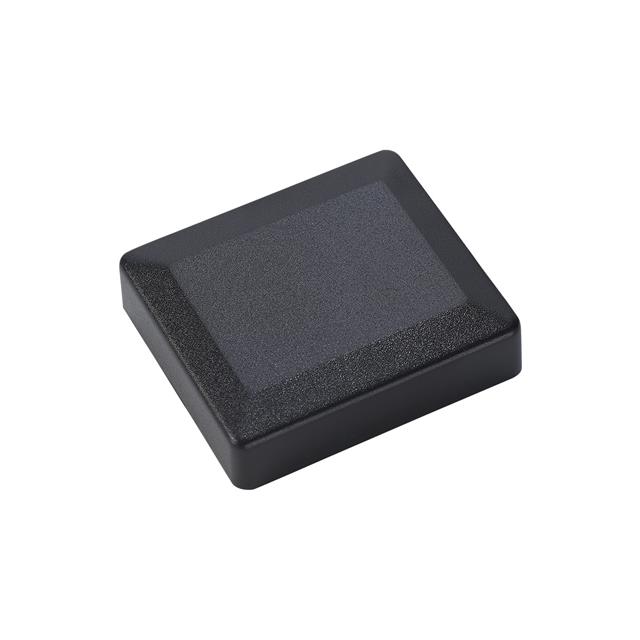

The AGPSHP35MMMSMA is an active GNSS antenna from the Trooper Max series, designed for GPS navigation at a center frequency of 1.575GHz with a range of 1.574GHz to 1.576GHz. It features an integrated Low Noise Amplifier (LNA) and a 5.182-meter cable terminated with an SMA connector. The unit utilizes magnetic mounting and measures 0.547 inches in height. This component supports industrial IoT applications requiring reliable wireless connectivity.

Antennas RF Feature Summary

• Integrated low noise amplifier for signal enhancement
• Magnetic mounting configuration for flexible installation
• Pre-terminated cable assembly with SMA interface

Antennas RF Applications

• GNSS positioning systems
• GPS tracking devices
• Industrial IoT networks

Antennas RF Procurement Notes

Verify the specific SMA termination type and cable length against system requirements before ordering. Confirm that the magnetic mounting base is suitable for the intended surface material and environmental conditions. Ensure compatibility with the receiving equipment's RF input specifications.

Antennas RF Selection Notes

Select this model when a dedicated GPS solution with built-in amplification is required. Consider the fixed cable length and SMA connector as permanent design constraints. Evaluate the magnetic mount stability against vibration and wind loads in the deployment environment.

Antennas RF Part Context

This component belongs to the Trooper Max product line by Amphenol PCTEL, specializing in purpose-built antennas for critical wireless connectivity. The series targets robust performance in industrial and mobile environments, providing specialized solutions for navigation and data transmission sectors.

Antennas RF Replacement Considerations

No public substitute part numbers are documented. Verify mechanical fit and electrical parameters if considering alternative brands.
