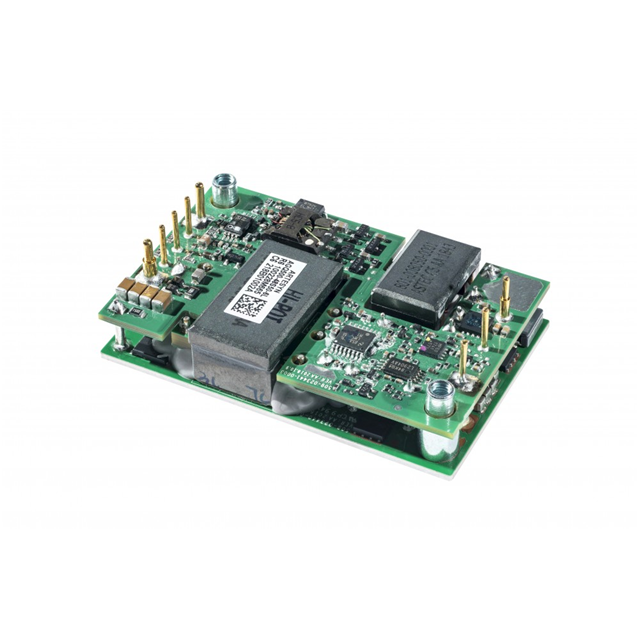

AGQ500-48S28P-6L

AGQ500-48S28P-6L is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is 500W, 36 - 75VIN, SINGLE, 28V@18. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AGQ500-48S28P-6L

• Description：500W, 36 - 75VIN, SINGLE, 28V@18
• Series：AGQ500 (500W)
• Mfr：ARTESYN / Advanced Energy
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：28V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：18A
• Power (Watts)：504 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 85°C
• Efficiency：94.50%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
• Supplier Device Package：Quarter Brick
• Control Features：Enable, Active High
• Approval Agency：CE, CSA, TUV, UL
• Standard Number：60950-1; 62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for AGQ500-48S28P-6L
