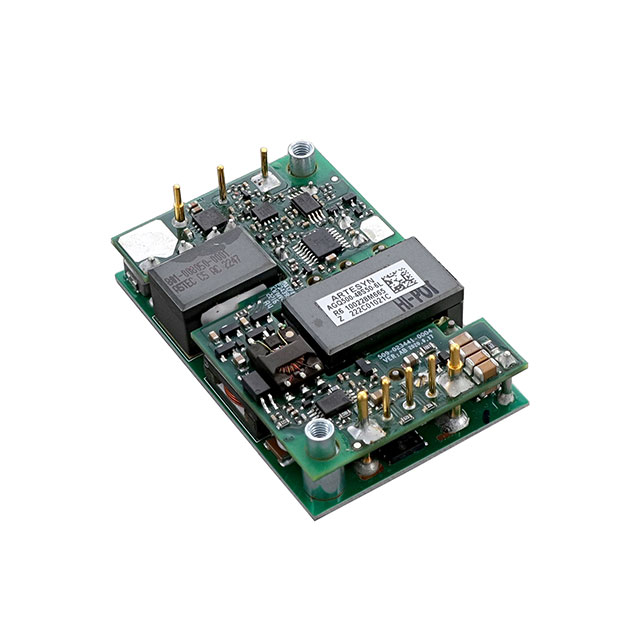

AGQ500-48S50-6L

AGQ500-48S50-6L is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 50V 500W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AGQ500-48S50-6L

• Description：DC DC CONVERTER 50V 500W
• Series：AGQ500 (500W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：50V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：10A
• Power (Watts)：500 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Baseplate, Remote On/Off
• Operating Temperature：-40°C ~ 85°C
• Efficiency：95%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
• Supplier Device Package：Quarter Brick
• Control Features：Enable, Active Low
• Approval Agency：CE, TUV, UL
• Standard Number：-
• Grade：-
• Qualification：-
