AGSC-2401I

Overview

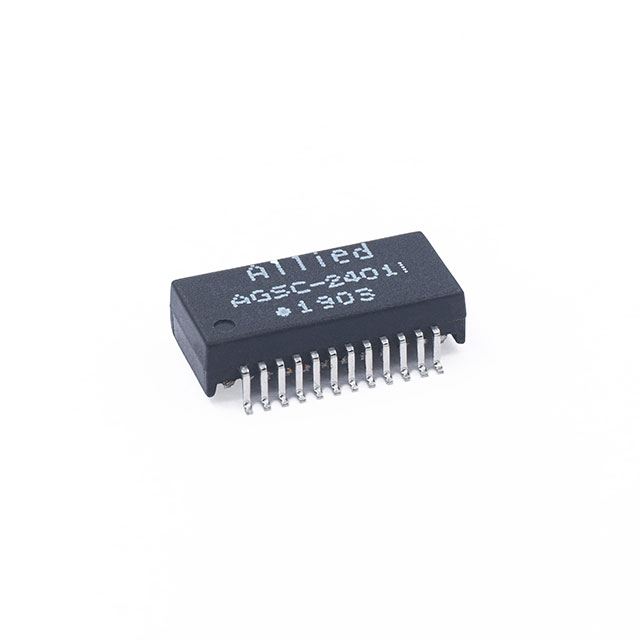

The AGSC-2401I is a single-port Gigabit LAN filter module manufactured by Allied Components International. Designed for 10/100/1000 Base T applications, this component integrates pulse transformers and filtering elements into a compact surface-mount package. It provides essential signal conditioning and isolation for Ethernet interfaces, ensuring compliance with IEEE 802.3 standards. The module supports high-density PCB layouts, making it suitable for modern networking equipment requiring reliable data transmission and noise suppression in gigabit speed environments.

Feature Summary

• Integrates pulse transformers and filtering components for complete signal conditioning
• Provides electrical isolation between the PHY and the network cable
• Supports 10/100/1000 Base T Ethernet data rates
• Designed for surface-mount assembly to facilitate automated manufacturing

Applications

• Gigabit Ethernet ports in computers and workstations
• Network interface cards (NICs) for desktop and server systems
• Industrial Ethernet controllers requiring robust signal integrity
• Consumer electronics with integrated Gigabit LAN capabilities

Procurement Notes

Verify the specific ordering suffix and tape-and-reel packaging details directly with the manufacturer or authorized distributors. Confirm that the component meets the required RoHS and REACH regulatory standards for your target market. Ensure that the procurement source is an authorized channel to guarantee authenticity and traceability of the Allied Components International product.

Selection Notes

Select the AGSC-2401I when designing single-port Gigabit Ethernet interfaces that require integrated isolation and filtering. Consider its physical dimensions for PCB space constraints and verify compatibility with the specific PHY chip's pinout requirements. Evaluate the need for PoE support; if Power over Ethernet is required, a different model from the same series may be necessary as this variant focuses on standard data transmission.

Part Context

This component belongs to the Allied Components International LAN filter module family, which offers various configurations for different Ethernet speeds and port counts. The AGSC-2401I specifically addresses the needs of Gigabit applications, distinguishing itself from lower-speed 10/100 Base-T modules and higher-complexity multi-port solutions within the manufacturer's portfolio.

Replacement Considerations

Consult official cross-reference lists for direct substitutes. Verify pin-to-pin compatibility and electrical parameter equivalence before replacing the original component with alternative part numbers from other manufacturers.
