AGSC-2401S

Overview

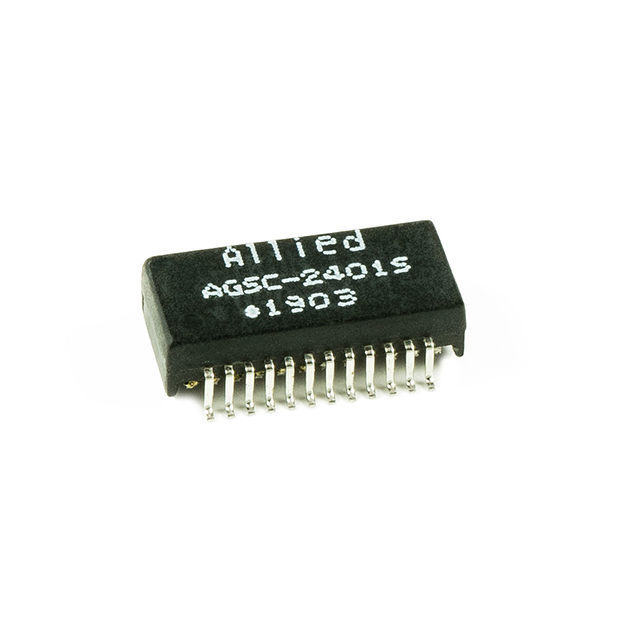

The AGSC-2401S is a pulse transformer designed for 100/1000 Base-T Gigabit Ethernet applications. It features a single-port LAN filter module configuration with a 1CT:1CT transmitter and 1CT:1CT receiver topology. The component provides an inductance of 350µH and utilizes a surface mount package for integration into network interface circuits.

Feature Summary

• Supports 100/1000 Base-T Gigabit Ethernet standards
• Integrates transmitter and receiver functions in a single module
• Designed for surface mount assembly

Applications

• Gigabit Ethernet network interfaces
• LAN filter modules
• Single-port network connectivity solutions

Procurement Notes

Verify the specific suffix (e.g., -UL) if regulatory compliance is required, as standard versions may differ from certified variants. Confirm surface mount footprint compatibility during PCB layout. Ensure sourcing from authorized distributors to guarantee authenticity and traceability of Allied Components International products.

Selection Notes

Select this component for applications requiring integrated pulse transformation for Gigabit speeds. Consider the 350µH inductance value for impedance matching requirements. Evaluate the surface mount package dimensions against available board space constraints before finalizing the design.

Part Context

This part belongs to the AGSC series of pulse transformers manufactured by Allied Components International. These components are specifically engineered for high-speed data transmission applications, providing necessary signal conditioning and isolation for Ethernet physical layer implementations.

Replacement Considerations

The AHSC-2424PI-UL and AGSC-2401S-UL are listed as related or substitute options within the manufacturer's portfolio. Verify pinout and electrical specifications before substitution.
