AGSC-2407I

Overview

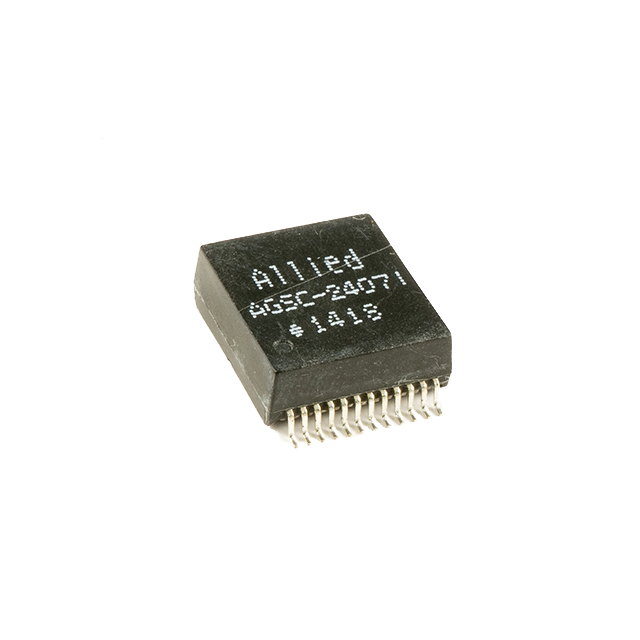

The AGSC-2407I is a pulse transformer manufactured by Allied Components International, designed for single-port LAN applications supporting 100/1000 Base-T standards. It features a 1CT:1 turns ratio and an inductance of 350µH. This component is intended for surface mount technology (SMT) integration into gigabit Ethernet network interfaces.

Feature Summary

• Supports 100/1000 Base-T Gigabit Ethernet single-port LAN applications
• Designed for surface mount assembly processes
• Provides galvanic isolation with a 1CT:1 turns ratio

Applications

• Gigabit Ethernet network interface cards
• Single-port LAN transceivers
• Network switch port modules

Procurement Notes

Verify the manufacturer part number against official Allied Components International documentation to ensure authenticity. Confirm that the specific revision matches the required 350µH inductance and 1CT:1 ratio specifications. Check RoHS compliance status through the official datasheet before procurement.

Selection Notes

Select this component for designs requiring a single-port solution for 100/1000 Base-T networks. Ensure the PCB layout supports surface mount packaging. Verify that the electrical parameters align with the target PHY chip requirements for impedance matching and isolation voltage.

Part Context

This part belongs to the AGSC series of pulse transformers from Allied Components International. The series includes variants like AGSC-2408S, which share similar form factors but may differ in pinout or specific electrical characteristics. These components are standard building blocks for Ethernet connectivity.

Replacement Considerations

Cross-reference with other Allied Components International models such as AGSC-2408S if pin compatibility allows. Verify functional equivalence with other 100/1000 Base-T single-port transformers from different manufacturers by comparing inductance and turns ratio.
