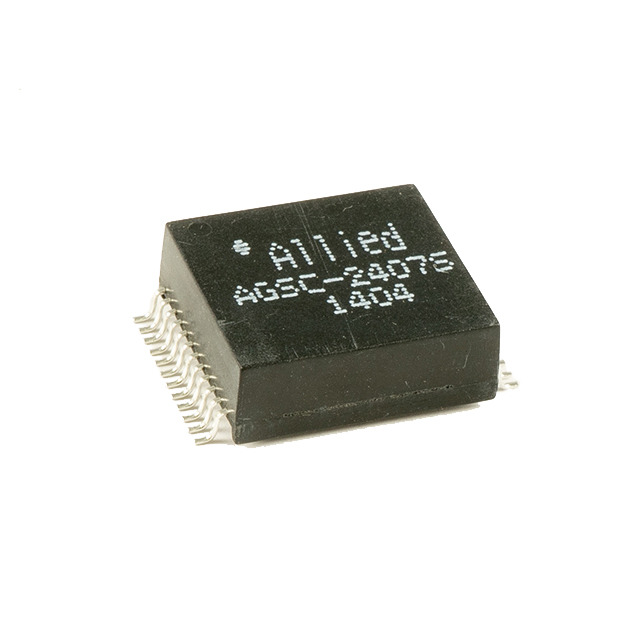

AGSC-2407S

$4.68

Description：100/1000 BASE T SINGLE PORT LAN
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)

SKU:8636a230c73b Category: Pulse Transformers Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：100/1000 BASE T SINGLE PORT LAN
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)
Transformer Type：LAN 100/1000 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1
Mounting Type：Surface Mount
Size / Dimension：0.600" L x 0.539" W (15.24mm x 13.70mm)
Height - Seated (Max)：0.222" (5.65mm)
Operating Temperature：0°C ~ 70°C
Grade：-
Qualification：-

Download product information

AGSC-2407S

Overview

The AGSC-2407S is a pulse transformer designed for 100/1000 BASE T single port LAN applications. It features a 1CT:1 configuration and an inductance of 350µH. The component utilizes surface mount technology with dimensions of 0.600" L x 0.539" W (15.24mm x 13.70mm) and a maximum seated height of 0.222" (5.65mm). It complies with RoHS3 standards.

Feature Summary

Designed for Gigabit Ethernet single port LAN applications
Surface mount construction for automated assembly
RoHS3 compliant environmental certification

Applications

100/1000 BASE T network interfaces
Gigabit Ethernet single port LAN systems
Telecommunications equipment

Procurement Notes

Verify the specific datasheet version to confirm exact electrical tolerances and pinout configurations before integration. Ensure compatibility with surface mount reflow profiles specified by the manufacturer. Cross-reference part numbers carefully, as Allied Components may offer variants like AGSC-2408S or AGSC-2407I with similar but distinct specifications.

Selection Notes

Select this component for designs requiring a compact, surface-mount solution for Gigabit Ethernet isolation. Consider the physical footprint of 15.24mm x 13.70mm when planning PCB layout. Verify that the 350µH inductance meets the signal integrity requirements of the target network interface controller.

Part Context

Allied Components International manufactures standard and custom magnetic components for networking and telecommunications markets. The AGSC series includes various pulse transformers tailored for different Ethernet speeds and port configurations, supporting both commercial and industrial applications.

Replacement Considerations

Public confirmed substitutes include AGSC-2408S and AGSC-2407I. Verify functional equivalence regarding inductance and mounting type before substitution.
