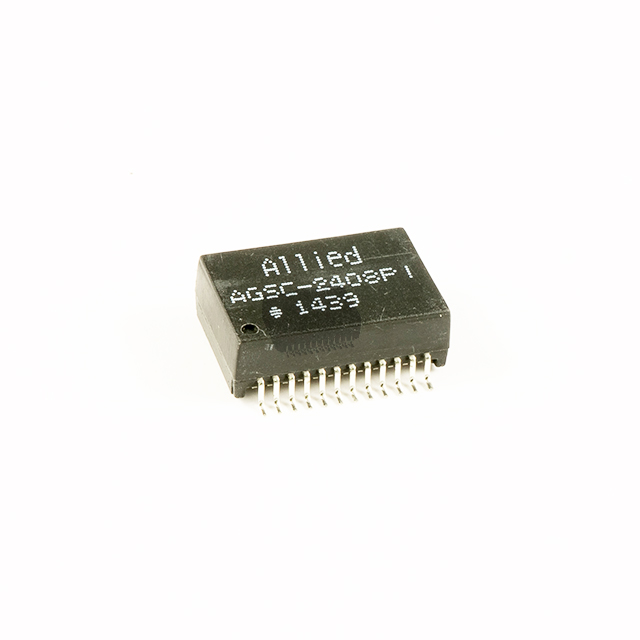

AGSC-2408PI

Overview

The AGSC-2408PI is a dual-port Gigabit Ethernet pulse transformer module designed for 100/1000 Base-T applications. It supports Power over Ethernet Plus (PoE+) standards, enabling simultaneous data transmission and power delivery over standard twisted-pair cabling. The component integrates magnetics for signal integrity and electrical isolation in network interfaces.

Feature Summary

• Dual-port configuration supporting two independent Gigabit Ethernet channels
• Integrated PoE+ capability for combined data and power transmission
• Optimized for 100BASE-T and 1000BASE-T signal integrity

Applications

• Gigabit Ethernet network interface cards
• PoE-enabled access points and switches
• Industrial networking equipment requiring dual-port connectivity

Procurement Notes

Verify the specific datasheet version to confirm pinout compatibility and RoHS status. Ensure the selected variant matches the required PoE power budget and isolation voltage specifications for the target application design.

Selection Notes

Select this component when dual-port Gigabit connectivity with PoE+ support is required. Compare against single-port alternatives like the AGSC-2407I if only one channel is needed. Verify physical footprint constraints against the manufacturer's mechanical drawing.

Part Context

This part belongs to the AGSC series of magnetic components from Allied Components International. It complements single-port variants such as the AGSC-2408S and other PoE-enabled models within the company's LAN transformer portfolio.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer directly for cross-reference information or equivalent components meeting identical electrical and mechanical specifications.
