AGSC-2408S

Overview

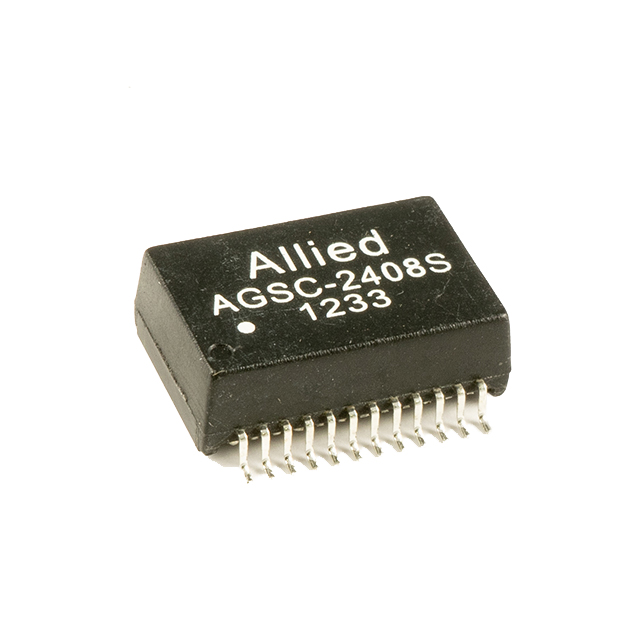

The AGSC-2408S is a pulse transformer manufactured by Allied Components International, designed for LAN applications supporting 100/1000 Base-T Gigabit Ethernet standards. It features a single-port configuration with a turns ratio of 1CT:1 and an inductance of 350µH. The component utilizes surface mount technology for integration into electronic circuits. It complies with ROHS3 environmental regulations.

Feature Summary

• Supports 100/1000 Base-T Gigabit Ethernet transmission
• Single-port LAN interface design
• Surface mount packaging for automated assembly

Applications

• Gigabit Ethernet network interfaces
• LAN port signal isolation
• Ethernet switch hardware modules

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and pinout compatibility before integration. Ensure that the supplier provides documentation confirming ROHS3 compliance status. Cross-reference the manufacturer part number with official Allied Components International catalogs to validate authenticity and current production status.

Selection Notes

Select this component for designs requiring isolated Gigabit Ethernet connectivity with a 1CT:1 turns ratio. The 350µH inductance specification suits standard LAN pulse transformer requirements. Surface mount format facilitates PCB layout optimization for compact networking devices.

Part Context

This component belongs to the Allied Components International series of LAN pulse transformers. It is engineered specifically for high-speed data transmission applications within local area networks. The product line focuses on providing reliable signal integrity for Ethernet physical layer implementations.

Replacement Considerations

Consult official substitution lists from Allied Components International for compatible alternatives. Verify electrical parameters such as inductance and turns ratio match the original design requirements when considering cross-references.
