Product Detailed Parameters
- Description：100/1000 BASE T SINGLE PORT POE
- Series：-
- Mfr：Allied Components International
- Package：Tape & Reel (TR)
- Transformer Type：LAN 100/1000 Base-T, Power over Ethernet (PoE)
- Inductance：350µH
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1CT:1CT Transmitter, 1CT:1CT Receiver
- Mounting Type：Surface Mount
- Size / Dimension：0.594" L x 0.280" W (15.10mm x 7.10mm)
- Height - Seated (Max)：0.323" (8.20mm)
- Operating Temperature：0°C ~ 70°C
- Grade：-
- Qualification：-
Download product information
Overview

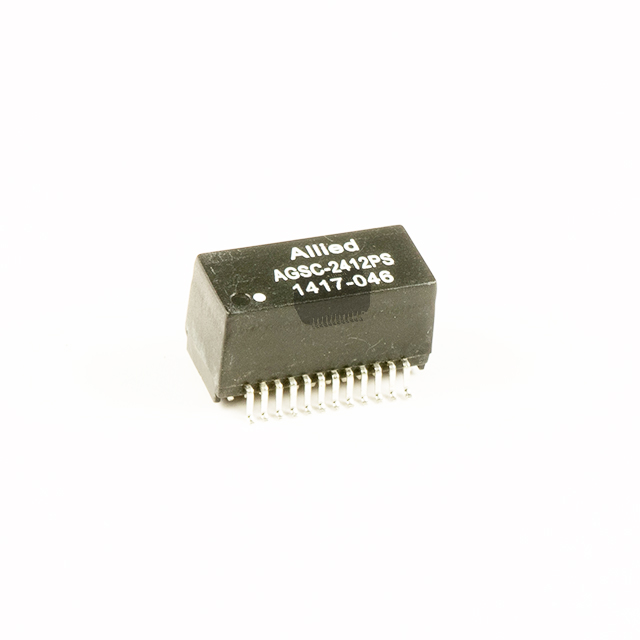

The AGSC-2412PS is a single-port pulse transformer manufactured by Allied Components International, designed for Ethernet applications. It supports both 100 Mbps and 1000 Mbps data rates, conforming to the 100/1000 Base-T standard. The component integrates Power over Ethernet (PoE) capabilities, allowing simultaneous transmission of data and power over a single network cable. This device is engineered to provide electrical isolation between the PHY chip and the RJ45 connector, ensuring signal integrity and protection against voltage spikes in gigabit networking environments.
Feature Summary
- Supports 100/1000 Base-T Gigabit Ethernet standards
- Integrates Power over Ethernet (PoE) functionality
- Provides galvanic isolation for network signals
Applications
- Gigabit Ethernet network interfaces
- PoE-enabled network switches
- Network interface cards (NICs)
- VoIP phones with PoE support
Procurement Notes
Verify that the specific part number matches the required PoE standard and isolation voltage ratings for your design. Confirm RoHS3 compliance status if environmental regulations apply. Ensure the surface mount package dimensions align with your PCB layout constraints before finalizing procurement orders.
Selection Notes
Select this component when a single-port solution for Gigabit Ethernet with integrated PoE is required. Consider the physical size and mounting type relative to available board space. Verify compatibility with the specific PHY controller being used in the system design.
Part Context
This component belongs to the AGSC series of pulse transformers from Allied Components International. The series includes various models tailored for different Ethernet speeds and port configurations. The AGSC-2412PS specifically addresses the needs of modern high-speed networking equipment requiring compact, integrated isolation solutions.
Replacement Considerations
Cross-reference with other Allied Components models such as AGSC-2416PS or AGSC-2410PS for similar single-port Gigabit PoE requirements. Verify pinout compatibility and electrical specifications before substituting with components from other manufacturers.
