AGSC-2417PI

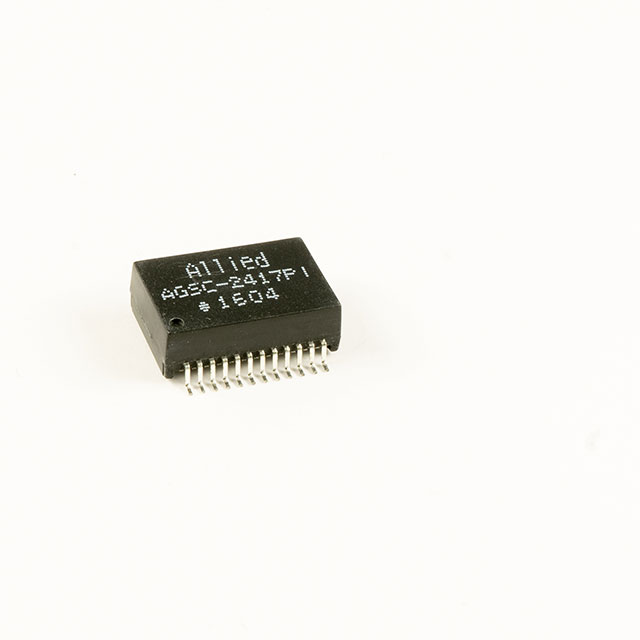

Overview

The AGSC-2417PI is a pulse transformer manufactured by Allied Components International, designed for LAN applications supporting 10/100/1000 Base-T standards with Power over Ethernet (PoE) capabilities. It features a 1:1CT turns ratio and is available in a surface mount package. The component operates within a temperature range of -40°C to +85°C.

Feature Summary

• Supports 10/100/1000 Base-T Gigabit Ethernet data transmission
• Enables Power over Ethernet (PoE) functionality
• Surface mount construction for automated assembly

Applications

• Gigabit Ethernet network interface cards
• PoE-enabled networking switches
• LAN filter modules

Procurement Notes

Verify the specific datasheet version from Allied Components International to confirm RoHS compliance status and exact physical dimensions. Ensure the selected variant matches the required PoE standard and pinout configuration for your PCB layout. Cross-reference the manufacturer part number with authorized distributors to avoid counterfeit components.

Selection Notes

Select this component when designing single-port Gigabit Ethernet interfaces requiring integrated PoE support. The 1:1CT ratio suits balanced line applications. Consider the operating temperature range of -40°C to +85°C for environmental suitability. Surface mount packaging facilitates high-volume manufacturing processes.

Part Context

This part belongs to the Allied Components International AGSC series of LAN pulse transformers. These components are engineered to provide electrical isolation and impedance matching for Ethernet PHY chips. The series includes variants for different port counts and PoE standards, serving as critical passive elements in modern network hardware.

Replacement Considerations

Check for direct substitutes like AGSC-2417PS if lead-free or specific packaging variations are required. Verify compatibility with existing PCB footprints before switching between similar models in the AGSC family.
