AGSC-2417PS

Overview

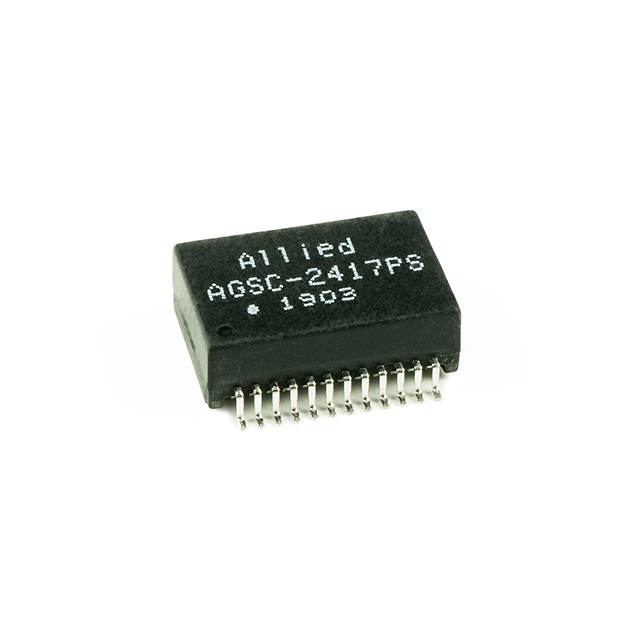

The AGSC-2417PS is a pulse transformer designed for LAN applications supporting 100/1000 Base-T standards. It features a 350µH inductance and a 1CT:1CT winding configuration. The component is packaged for surface mount technology, facilitating integration into compact electronic circuits requiring reliable signal isolation and transmission for gigabit Ethernet connectivity.

Feature Summary

• Supports 100/1000 Base-T Gigabit Ethernet data transmission
• Integrated Power over Ethernet (PoE) capability
• Surface mount package design for automated assembly

Applications

• Gigabit Ethernet network interface cards
• PoE-enabled switch ports
• Network infrastructure equipment

Procurement Notes

Verify the specific datasheet version from Allied Components International to confirm pinout compatibility and mechanical dimensions. Ensure the surface mount footprint matches the target PCB layout. Cross-reference the 1CT:1CT configuration with circuit schematics to validate electrical requirements before finalizing procurement orders.

Selection Notes

Select this component when designing systems requiring integrated PoE support alongside Gigabit Ethernet signaling. The 350µH inductance value must align with the magnetic balance requirements of the PHY transceiver. Consider the surface mount form factor for space-constrained designs where high-frequency performance is critical.

Part Context

This part belongs to the AGSC series of pulse transformers manufactured by Allied Components International. These components are specialized for datacom applications, providing galvanic isolation between the MAC layer and the physical medium. The series typically includes variants optimized for different speed standards and PoE classifications.

Replacement Considerations

Consult official substitution lists from Allied Components International for verified equivalents. Generic replacements may not match the specific 350µH inductance or PoE current handling capabilities required for 100/1000 Base-T compliance.
