AGSC-2424PI

Overview

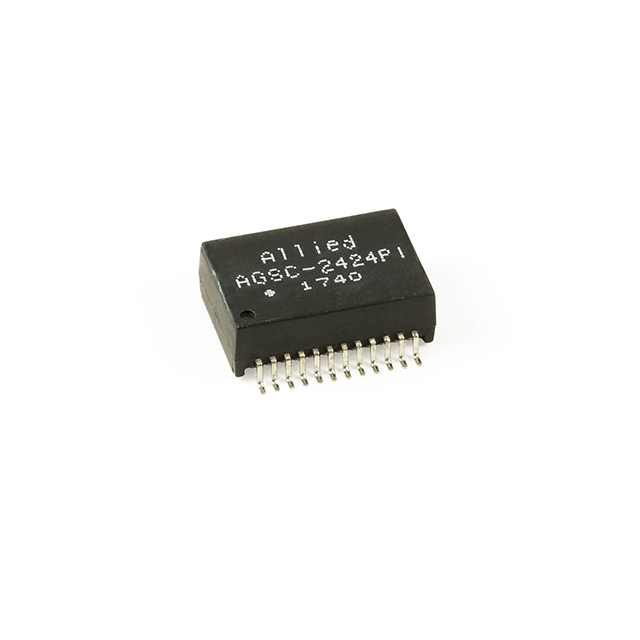

The AGSC-2424PI is a LAN pulse transformer manufactured by Allied Components International, designed for 10/100/1000 Base-T Ethernet applications. It provides 350µH inductance for circuit tuning and filtering. The component features a 1CT:1CT configuration and supports Surface Mount installation with a maximum installed height of 0.256 inches (6.50mm).

Feature Summary

• Provides signal filtering and transformation for high-speed LAN networks.
• Supports 10/100/1000 Base-T Ethernet standards.
• Features 1CT:1CT configuration for circuit integration.

Applications

• 10/100/1000 Base-T Ethernet network interfaces.
• LAN port signal conditioning modules.
• High-speed data communication equipment.

Procurement Notes

Verify the specific datasheet version and UL certification status (e.g., AGSC-2424PI-UL) required for your design, as safety approvals may vary. Confirm surface mount package compatibility and pinout alignment with your PCB layout before finalizing orders to ensure correct integration into the target system.

Selection Notes

Select this component when designing for Gigabit Ethernet ports requiring integrated pulse transformers. Ensure the 350µH inductance value meets the impedance matching requirements of the specific PHY chip used. Verify that the 6.50mm height constraint fits within the mechanical envelope of the final assembly.

Part Context

This part belongs to the AGSC series of LAN pulse transformers from Allied Components International. These components are engineered for networking and telecommunications markets, providing essential signal integrity functions for Ethernet physical layer interfaces in commercial and industrial devices.

Replacement Considerations

Public confirmed substitutes include AHSC-4451I, AHSC-1623S-UL, AGSC-2401S-UL, and AT3973I. Verify electrical parameters and pin configurations before substitution.
