AGSC-2429PI

Overview

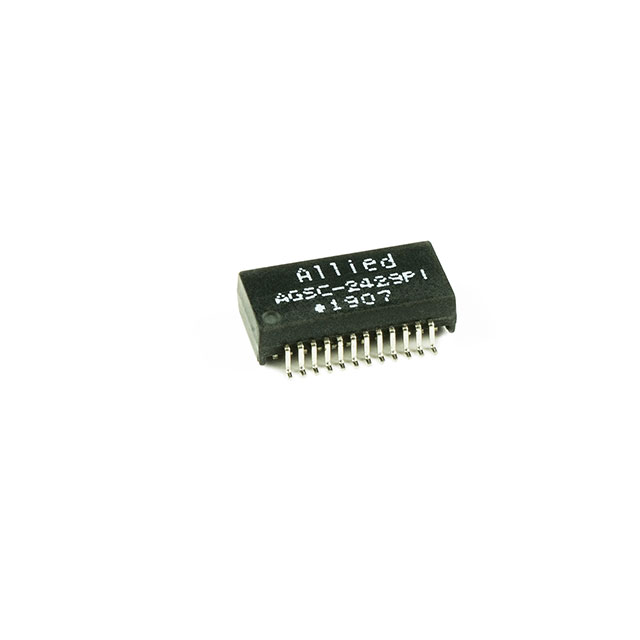

The AGSC-2429PI is a LAN pulse transformer manufactured by Allied Components International, designed for 100/1000 Base-T single port Power over Ethernet (PoE+) applications. It supports data transmission rates of up to 1 Gbps while simultaneously delivering power over the same twisted pair lines. The component integrates isolation and signal coupling functions essential for reliable Ethernet connectivity in PoE+ environments.

Feature Summary

• Supports 100/1000 Base-T single port PoE+ standards
• Integrates data signal coupling and electrical isolation
• Designed for high-speed data transmission alongside power delivery

Applications

• Single port PoE+ network interface cards
• Ethernet switches with PoE+ capabilities
• Access points supporting 100/1000 Base-T standards

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with Allied Components International or authorized distributors before procurement. Confirm that the Tape & Reel packaging matches your automated assembly requirements. Ensure the part number suffix aligns with your design specifications for pinout and isolation voltage ratings.

Selection Notes

Select this component when designing systems requiring integrated PoE+ support for 100/1000 Base-T networks. Consider its physical footprint and thermal characteristics relative to your PCB layout constraints. Validate compatibility with your controller's differential signaling requirements and ensure the isolation voltage meets safety standards for your target market.

Part Context

This part belongs to the AGSC series of LAN transformers from Allied Components International, which are engineered for Ethernet connectivity. The series includes variants for different PoE standards and data rates. The AGSC-2429PI specifically targets the PoE+ segment, distinguishing it from standard PoE or non-PoE counterparts within the manufacturer's portfolio.

Replacement Considerations

Cross-reference with other Allied Components International models such as AGSC-2437PI or AGSC-2439PI if PoE+ is not required or if different form factors are needed. Verify pin compatibility and electrical parameters before substitution.
