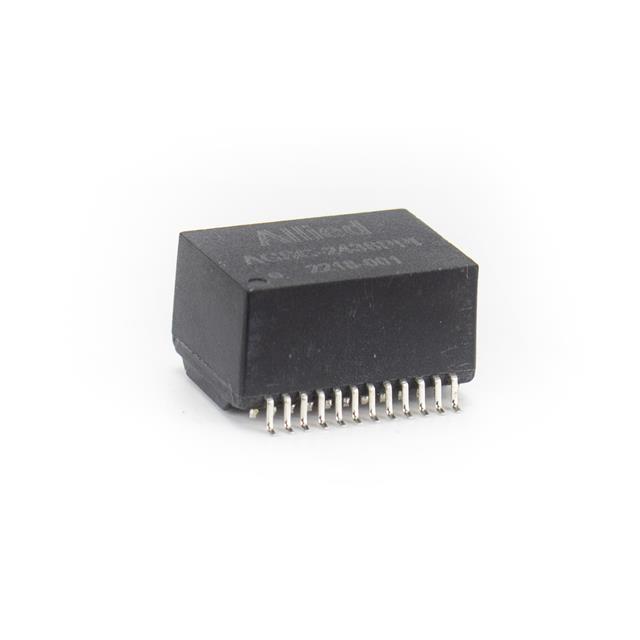

AGSC-2436PPI

$4.68

Description：100/1000 BaseT LAN Filter Module
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)

SKU:4290efb66841 Category: Pulse Transformers Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：100/1000 BaseT LAN Filter Module
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)
Transformer Type：LAN 100/1000 Base-T, Power over Ethernet (PoE)
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT
Mounting Type：Surface Mount
Size / Dimension：0.728" L x 0.524" W (18.50mm x 13.30mm)
Height - Seated (Max)：0.414" (10.51mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

AGSC-2436PPI

Overview

The AGSC-2436PPI is a pulse transformer module designed for 100/1000 Base-T LAN applications. It features a 1CT:1CT turns ratio and an inductance of 350uH. The component measures 0.728 inches in length and 0.524 inches in width, with a maximum seated height of 0.256 inches. It operates within a temperature range of -40°C to 85°C.

Feature Summary

Supports 100/1000 Base-T LAN signal transmission
Integrated common mode choke functionality
Surface mount construction for automated assembly

Applications

Ethernet network interface cards
LAN filter modules
Network switch ports

Procurement Notes

Verify the specific suffix 'PPI' against the manufacturer's official datasheet to confirm package type and tape & reel specifications. Ensure the operating temperature range meets system requirements. Cross-reference the inductance value of 350uH with circuit design constraints before finalizing procurement.

Selection Notes

Select this component for designs requiring integrated pulse transformation and filtering in Gigabit Ethernet interfaces. Confirm physical footprint compatibility with PCB layout constraints. Validate that the 1CT:1CT configuration aligns with the transformer balance requirements of the specific PHY chip being utilized.

Part Context

This part belongs to Allied Components International's line of magnetic components for networking equipment. It serves as a critical passive element in maintaining signal integrity for high-speed data transmission standards.

Replacement Considerations

Consult the manufacturer's cross-reference list for direct substitutes. Verify pinout compatibility and electrical parameters such as inductance and isolation voltage when considering alternative suppliers.
