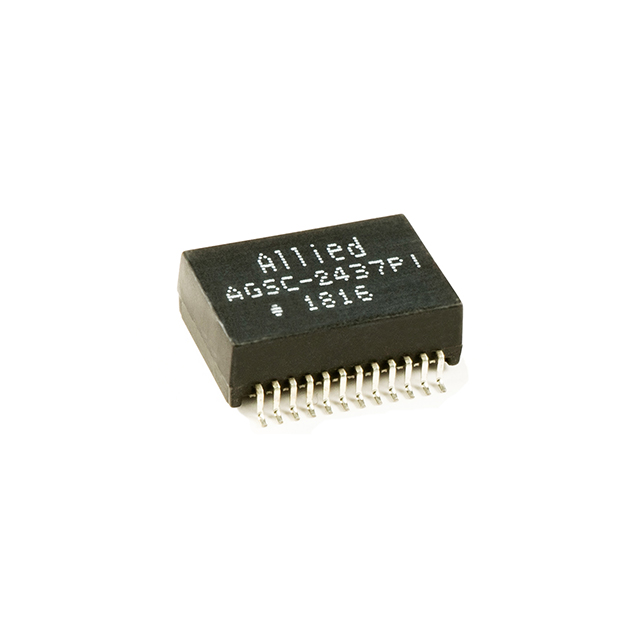

AGSC-2437PI
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：100/1000 BASE T POE PLUS LAN FIL
- Series：-
- Mfr：Allied Components International
- Package：Tape & Reel (TR)
- Transformer Type：LAN 100/1000 Base-T, Power over Ethernet (PoE)
- Inductance：350µH
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1CT:1CT
- Mounting Type：Surface Mount
- Size / Dimension：0.717" L x 0.478" W (18.20mm x 12.15mm)
- Height - Seated (Max)：0.256" (6.50mm)
- Operating Temperature：-40°C ~ 85°C
- Grade：-
- Qualification：-
Download product information
Overview
The AGSC-2437PI is a pulse transformer manufactured by Allied Components International, designed for high-speed data transmission applications. It supports 10/100/1000 Base-T Ethernet standards and features a turns ratio of 1:1 with a primary inductance of 350µH. The component is RoHS3 compliant and classified as Moisture Sensitivity Level (MSL) 1, indicating unlimited exposure to moisture before reflow soldering. It is supplied in Tape & Reel packaging.
Feature Summary
- Supports 10/100/1000 Base-T Ethernet signal transformation
- RoHS3 compliant environmental classification
- Moisture Sensitivity Level 1 for reliable reflow processing
Applications
- 10/100/1000 Base-T LAN filter modules
- Single port PoE applications
- High-speed Ethernet signal filtering
Procurement Notes
Verify the specific datasheet version when sourcing, as Allied Components International may update specifications over time. Confirm that the received units match the RoHS3 compliance status and MSL 1 rating documented in official publications. Ensure the tape and reel packaging integrity is maintained during handling to prevent damage to the components prior to assembly.
Selection Notes
Select this component for designs requiring standardized pulse transformers compatible with Gigabit Ethernet interfaces. The 350µH inductance value is critical for maintaining signal integrity at high frequencies. Consider the MSL 1 rating for manufacturing processes that require extended storage or exposure periods without baking.
Part Context
This part belongs to the AGSC series of pulse transformers from Allied Components International, which are engineered for network interface cards and Ethernet ports. The series includes variants like AGSC-2439PI and AGSC-2436PPI, tailored for different power and filtering requirements within the same communication standard ecosystem.
Replacement Considerations
Cross-reference with Allied Components International part numbers such as AGSC-2439PI for similar functionality. Verify pinout compatibility and electrical parameters before substituting with generic alternatives.
