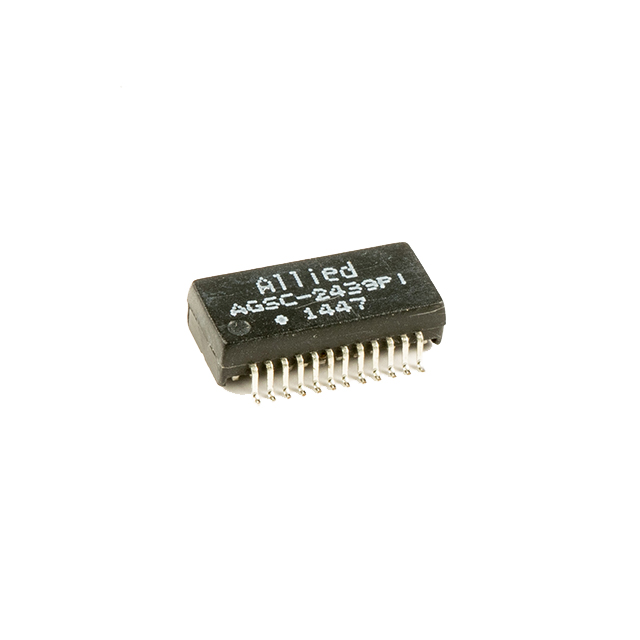

AGSC-2439PI

$5.31

Description：100/1000 BASE T POE LAN FILTER M
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)

SKU:491822437879 Category: Pulse Transformers Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：100/1000 BASE T POE LAN FILTER M
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)
Transformer Type：LAN 10/100/1000 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT
Mounting Type：Surface Mount
Size / Dimension：0.594" L x 0.280" W (15.10mm x 7.10mm)
Height - Seated (Max)：0.157" (4.00mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

AGSC-2439PI

Overview

The AGSC-2439PI is a surface-mount pulse transformer designed for single-port LAN applications supporting 10/100/1000 Base-T Ethernet standards. It incorporates Power over Ethernet (PoE) filtering capabilities to manage power and data signals on a single port. The component features a 1CT:1CT winding configuration with an inductance of 350µH, ensuring signal integrity for high-speed network transmissions.

Feature Summary

Supports 10/100/1000 Base-T Ethernet data transmission rates
Integrates Power over Ethernet (PoE) filtering functionality
Designed for single-port LAN interface applications

Applications

Gigabit Ethernet network interface cards
PoE-enabled network switches
Industrial communication modules requiring integrated power and data filtering

Procurement Notes

Verify the specific datasheet version from Allied Components International to confirm RoHS compliance status and pinout configurations prior to integration. Ensure the selected variant matches the required PoE standard specifications for the target application design.

Selection Notes

Select this component when a compact solution for combined Gigabit data signaling and PoE power delivery is required. The surface-mount package facilitates automated assembly processes suitable for high-volume manufacturing environments demanding reliable network connectivity.

Part Context

This part belongs to the Allied Components International series of LAN pulse transformers. These components are engineered to meet IEEE 802.3 standards for twisted-pair cabling, providing essential impedance matching and common-mode rejection for stable network performance.

Replacement Considerations

The AGSC-2424PI is a documented substitute within the same product line, offering similar 350µH inductance and 1CT:1CT configuration for compatible 10/100/1000 Base-T applications.
