AGSC-2477PI

$4.89

Description：100/1000 BASE-T GIGABIT SINGLE P
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)

SKU:3b76571d9e68 Category: Pulse Transformers Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：100/1000 BASE-T GIGABIT SINGLE P
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)
Transformer Type：LAN 100/1000 Base-T, Power over Ethernet (PoE)
Inductance：120µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type：Surface Mount
Size / Dimension：0.693" L x 0.480" W (17.60mm x 12.20mm)
Height - Seated (Max)：0.236" (6.00mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

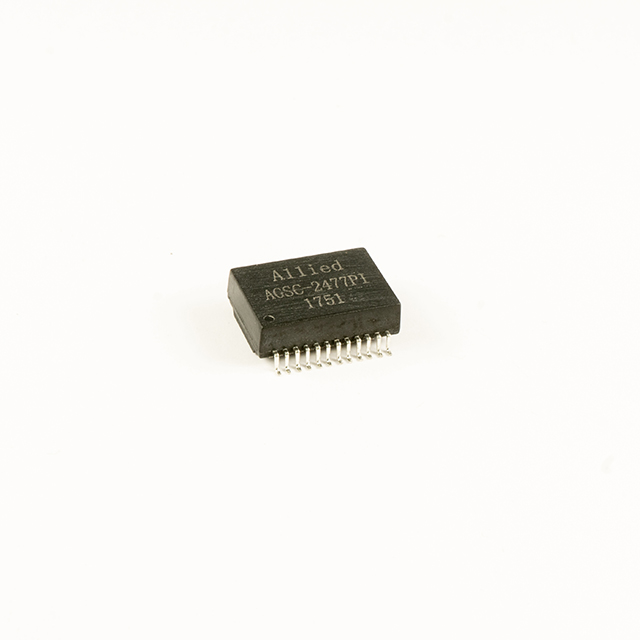

AGSC-2477PI

Overview

The AGSC-2477PI is a Gigabit Ethernet transformer module manufactured by Allied Components International. It is designed for 10/100/1000 BASE-T single-port applications, providing signal isolation and impedance matching for high-speed data transmission. The component supports standard Ethernet physical layer requirements, ensuring reliable connectivity in network infrastructure equipment.

Feature Summary

Supports 10/100/1000 BASE-T Gigabit Ethernet standards
Provides single-port LAN signal processing
Ensures electrical isolation between transceiver and cable

Applications

Gigabit Ethernet network interfaces
Network switches and routers
Industrial communication systems

Procurement Notes

Verify the exact datasheet specifications with Allied Components International to confirm pinout compatibility and environmental ratings before integration. Ensure that the selected variant matches the specific design-in requirements for the target application.

Selection Notes

Select this component for designs requiring certified 10/100/1000 BASE-T performance in a compact form factor. Consider thermal management and PCB layout constraints typical for surface-mount magnetic components in high-density networking hardware.

Part Context

Allied Components International specializes in magnetic components, including inductors and transformers. The AGSC series includes various models tailored for different Ethernet speeds and port configurations, serving as critical passive elements in modern network interface cards.

Replacement Considerations

Cross-reference with Allied Components part numbers such as AGSC-2424PI or AGSC-2417I for similar Gigabit single-port transformer functions. Verify mechanical dimensions and electrical parameters against the original design specifications before substitution.
