AGSC-4802PI

Overview

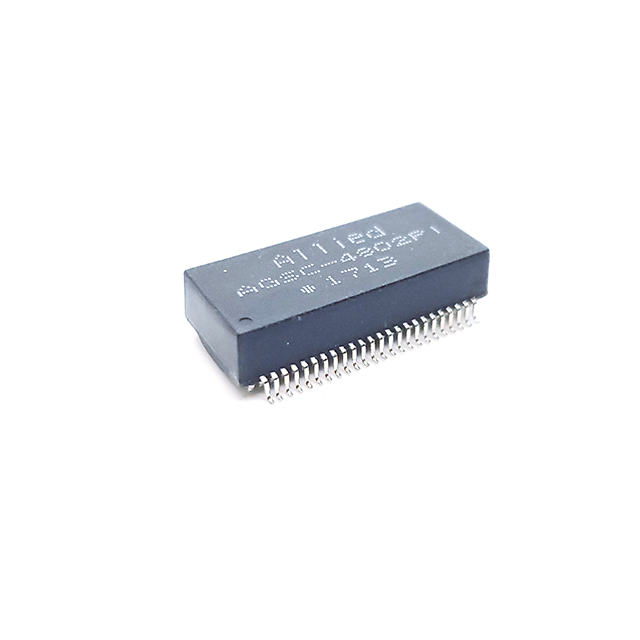

The AGSC-4802PI is a dual-port Gigabit Ethernet transformer module manufactured by Allied Components International. It supports 10/100/1000BASE-T standards and integrates Power over Ethernet Plus (PoE+) capabilities for simultaneous data and power transmission. The component features integrated common mode chokes, center-tapped transformers, and protection circuits within a compact surface-mount package designed for high-density PCB layouts.

Feature Summary

• Supports 10/100/1000BASE-T Ethernet data rates
• Integrates PoE+ power delivery functionality
• Dual-port configuration for independent channel isolation

Applications

• Gigabit Ethernet network interface cards
• PoE-enabled industrial communication devices
• Dual-port network switches and routers

Procurement Notes

Verify the specific datasheet version to confirm pinout compatibility and RoHS compliance status before integration. Ensure thermal management requirements are met for PoE+ operation. Cross-reference ordering codes with official Allied Components International documentation to avoid substitution errors in production.

Selection Notes

Select this component when dual-port Gigabit connectivity with PoE+ support is required. Evaluate physical footprint constraints against the specified package dimensions. Confirm that the integrated protection levels meet the target application's surge immunity standards.

Part Context

Allied Components International specializes in magnetic components for LAN and telecom applications. This model belongs to their standard portfolio of integrated magnetics designed to simplify Ethernet PHY interface design by consolidating multiple passive components into a single module.

Replacement Considerations

Consult official manufacturer substitution lists for verified equivalents. Generic replacements may lack identical PoE+ performance or isolation ratings.
