AGSC-4803S

$5.53

Description：100/1000 BASE T GIGABIT DUAL POR
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)

SKU:d5e29970556e Category: Pulse Transformers Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：100/1000 BASE T GIGABIT DUAL POR
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)
Transformer Type：LAN 100/1000 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1
Mounting Type：Surface Mount
Size / Dimension：1.094" L x 0.480" W (27.80mm x 12.20mm)
Height - Seated (Max)：0.283" (7.20mm)
Operating Temperature：0°C ~ 70°C
Grade：-
Qualification：-

Download product information

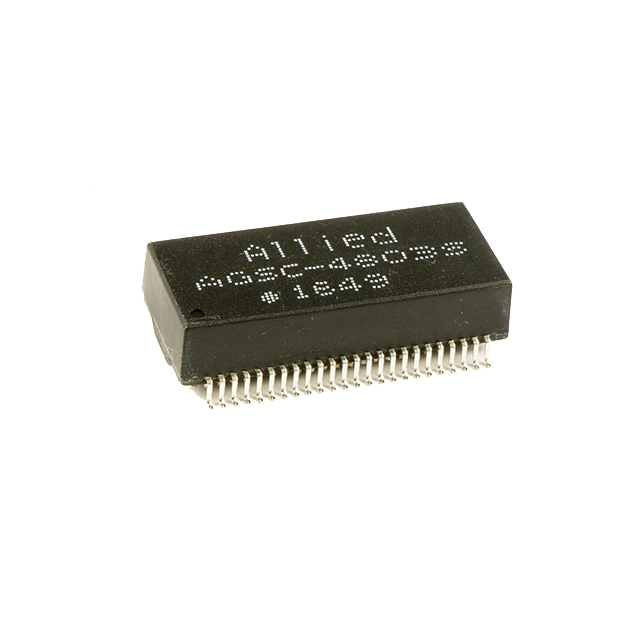

AGSC-4803S

Overview

The AGSC-4803S is a pulse transformer manufactured by Allied Components International, designed for LAN applications supporting 100/1000 Base-T standards. It features a dual-port configuration with a 1CT:1 turns ratio and utilizes surface mount technology. The component measures 27.80mm in length and 12.20mm in width, operating within a temperature range of 0°C to 70°C.

Feature Summary

Supports 100/1000 Base-T Gigabit Ethernet standards
Dual-port design for integrated network connectivity
Surface mount package for automated assembly

Applications

Gigabit Ethernet network interfaces
LAN port integration
Network switch modules

Procurement Notes

Verify the manufacturer designation carefully, as Allied Components International produces this specific pulse transformer model. Confirm that the required specifications align with 100/1000 Base-T Gigabit Ethernet requirements. Ensure the surface mount footprint matches the board layout dimensions of 27.80mm by 12.20mm before finalizing procurement orders.

Selection Notes

Select this component when a dual-port solution is required for Gigabit Ethernet applications. The surface mount format facilitates efficient PCB assembly processes. Consider the operational temperature range of 0°C to 70°C to ensure compatibility with the intended environmental conditions of the electronic device.

Part Context

This part belongs to the series of pulse transformers from Allied Components International, specifically engineered for high-speed data transmission. It serves as a critical interface component in networking hardware, providing electrical isolation and signal integrity for Gigabit Ethernet connections in compact form factors.
