Product Detailed Parameters
- Description：100/1000 BASE-T GIGABIT POE++ LA
- Series：-
- Mfr：Allied Components International
- Package：Tape & Reel (TR)
- Transformer Type：LAN 100/1000 Base-T, Power over Ethernet (PoE)
- Inductance：350µH
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1CT:1CT
- Mounting Type：Surface Mount
- Size / Dimension：1.094" L x 0.480" W (27.80mm x 12.20mm)
- Height - Seated (Max)：0.283" (7.20mm)
- Operating Temperature：-40°C ~ 85°C
- Grade：-
- Qualification：-
Download product information
Overview

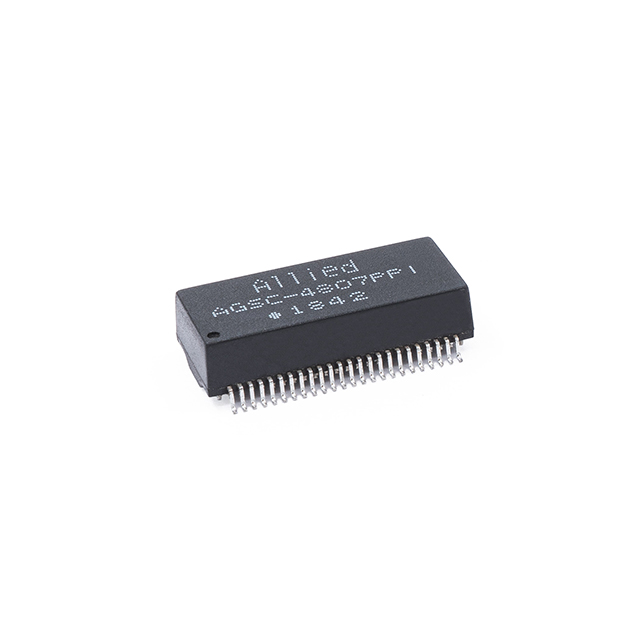

The AGSC-4807PPI is a pulse transformer designed for LAN 100/1000 Base-T and Power over Ethernet (PoE) applications. It features a 350µH inductance value intended for circuit tuning and filtering. The component utilizes a 1CT:1CT turns ratio configuration between primary and secondary windings. It is available in a surface mount package with a maximum seated height of 0.283 inches (7.20mm). The device operates within a temperature range of -40°C to 85°C and holds RoHS3 compliance status.
Feature Summary
- Supports LAN 100/1000 Base-T and Power over Ethernet (PoE) standards
- Provides 350µH inductance for circuit tuning and filtering
- Surface mount construction with low profile design
Applications
- LAN 100/1000 Base-T network interfaces
- Power over Ethernet (PoE) powered devices
- Telecommunications equipment signal processing
Procurement Notes
Verify the specific datasheet version provided by Allied Components International to confirm mechanical dimensions and electrical tolerances prior to integration. Ensure that the surface mount footprint matches the target PCB layout specifications exactly. Confirm that the operating temperature range aligns with the environmental requirements of the final assembly. Check for any recent updates regarding RoHS3 compliance documentation to ensure regulatory adherence during procurement.
Selection Notes
Select this component when designing systems requiring integrated pulse transformation for Gigabit Ethernet and PoE applications. The 350µH inductance specification is critical for maintaining signal integrity in high-speed data transmission lines. Consider the 0.283-inch maximum height constraint if vertical space within the enclosure is limited. The wide operating temperature range supports deployment in diverse industrial or outdoor environments where thermal stability is required.
Part Context
Allied Components International manufactures magnetic components for LAN, telecom, and power conversion designs. The AGSC series includes various pulse transformers tailored for different networking standards. This specific model addresses the need for compact, high-performance magnetics in modern network interface cards and switches supporting both data and power delivery over single twisted pair cables.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing board layouts before considering alternative suppliers. Cross-reference mechanical footprints and electrical characteristics carefully if sourcing from other manufacturers.
