AGSC-4811S

Overview

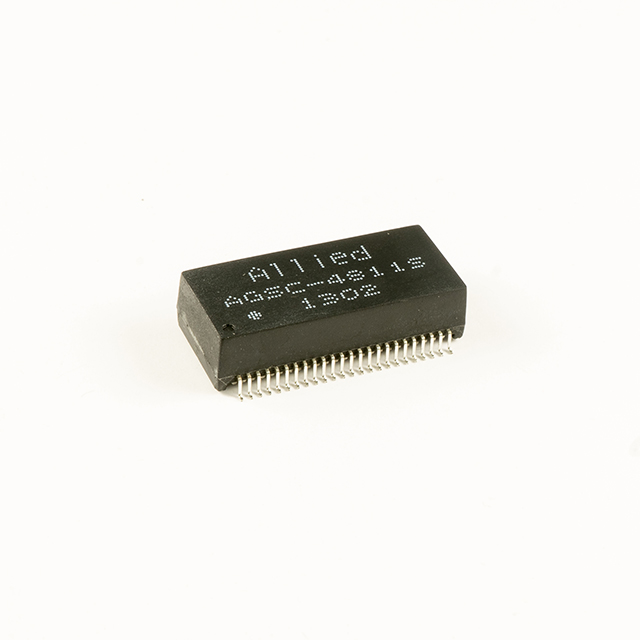

The AGSC-4811S is a pulse transformer designed for 100/1000 Base-T Gigabit Ethernet applications. It features a dual port configuration with a primary inductance of 350µH. The component supports Surface Mount Technology (SMT) packaging, facilitating automated assembly processes. It is engineered to meet the electrical requirements for high-speed data transmission in network interfaces.

Feature Summary

• Supports 100/1000 Base-T Gigabit Ethernet standards
• Dual port design for integrated network solutions
• Surface mount package for efficient PCB integration

Applications

• Gigabit Ethernet network interface cards
• Computer networking equipment
• Industrial communication modules

Procurement Notes

Verify the specific suffix 'S' indicates the surface mount variant when sourcing. Confirm RoHS compliance status and lead-free characteristics against current manufacturer documentation. Ensure the dual port requirement matches the target circuit design before procurement.

Selection Notes

Select this component for applications requiring integrated Gigabit Ethernet isolation. The dual port architecture simplifies board layout compared to single-port alternatives. Verify that the 350µH inductance value aligns with the specific PHY controller requirements of the design.

Part Context

This part belongs to Allied Components International's series of pulse transformers for LAN applications. It serves as a critical isolation component in Ethernet physical layer circuits, ensuring signal integrity and safety between the MAC and the physical medium.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
