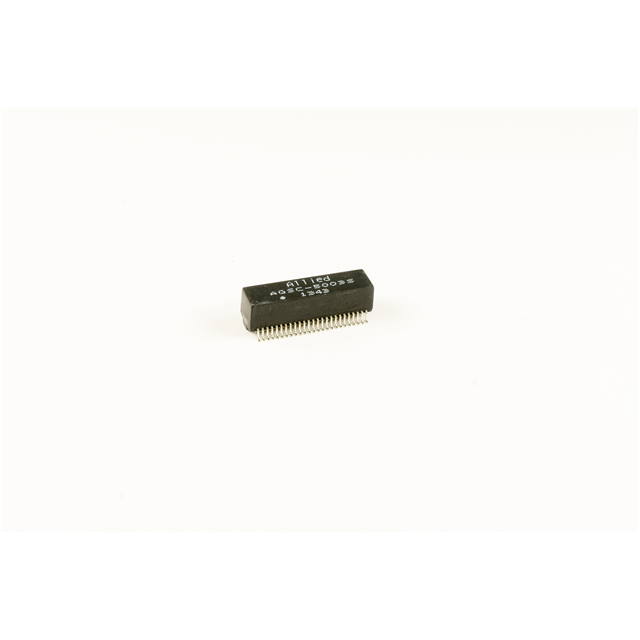

AGSC-5003S
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：10/100/1000 BASE-T GIGABIT DUAL
- Series：-
- Mfr：Allied Components International
- Package：Tape & Reel (TR)
- Transformer Type：LAN 10/100/1000 Base-T
- Inductance：350µH
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1CT:1CT Transmitter, 1CT:1CT Receiver
- Mounting Type：Surface Mount
- Size / Dimension：1.100" L x 0.300" W (27.94mm x 7.62mm)
- Height - Seated (Max)：0.340" (8.64mm)
- Operating Temperature：0°C ~ 70°C
- Grade：-
- Qualification：-
Download product information
Overview
The AGSC-5003S is a pulse transformer manufactured by Allied Components International, designed for 10/100/1000 BASE-T Gigabit Dual applications. It supports Surface Mount technology and operates within a temperature range of 0°C to 70°C. The component is part of the company's magnetic products portfolio, which includes inductors and ferrite beads.
Feature Summary
- Supports 10/100/1000 BASE-T Gigabit Dual Ethernet standards
- Surface mount construction for automated assembly
Applications
- Gigabit Ethernet network interfaces
- Dual port communication systems
Procurement Notes
Verify the manufacturer designation as Allied Components International when sourcing this component. Confirm that the surface mount package type aligns with your PCB layout requirements. Ensure the operating temperature range of 0°C to 70°C meets your environmental specifications. Cross-reference the 10/100/1000 BASE-T capability with your network interface controller requirements to ensure compatibility.
Selection Notes
Select this component for dual-port Gigabit Ethernet designs requiring surface mount integration. Consider the thermal performance within the specified 0°C to 70°C range for your application environment. Verify that the magnetic characteristics meet IEEE 802.3 standards for signal integrity in high-speed data transmission scenarios.
Part Context
Allied Components International specializes in magnetic components including inductors, ferrite beads, and custom magnetics. The AGSC-5003S belongs to their series of pulse transformers tailored for networking applications. This product line emphasizes compact surface mount solutions for modern electronic devices requiring reliable data transmission.
Replacement Considerations
AGSC-5003I
FAQ
What is the operating temperature range?
The component operates between 0°C and 70°C.
Does it support PoE?
Official documentation indicates that many parts in this series are PoE enabled, but specific verification for AGSC-5003S is required from the datasheet.
