AGTL-7201S

Overview

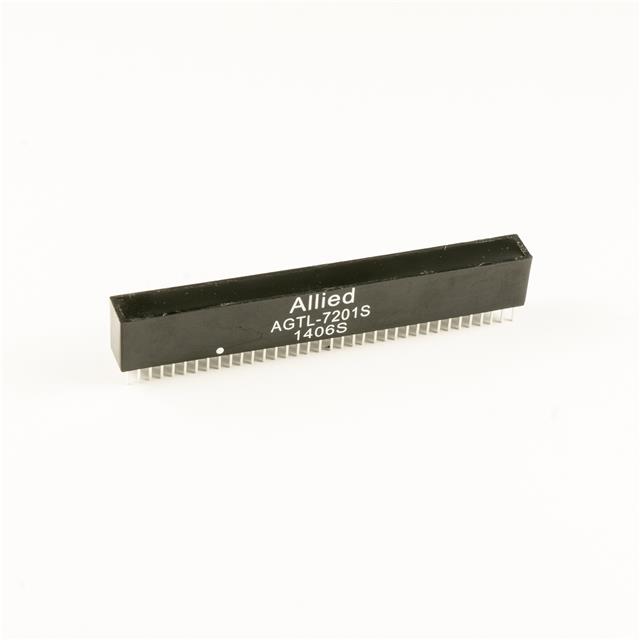

The AGTL-7201S is a quad port transformer module designed for 100/1000 Base T Gigabit Ethernet applications. It integrates four independent channels to support high-speed data transmission over twisted pair cabling. The component features an inductance value of 0.5H, ensuring signal integrity and impedance matching for gigabit network interfaces. This surface-mount or through-hole device facilitates compact PCB layouts while maintaining compliance with IEEE 802.3 standards for reliable connectivity.

Feature Summary

• Integrates four independent transformer channels for simultaneous data processing
• Optimized for 100/1000 Base T Gigabit Ethernet signal transmission
• Provides impedance matching and common-mode noise rejection

Applications

• Gigabit Ethernet network interface cards
• Industrial Ethernet switches
• Communication equipment requiring 10/100/1000BASE-T connectivity

Procurement Notes

Verify the specific package type and pin configuration against the official datasheet before integration. Confirm that the 0.5H inductance specification meets your circuit design requirements. Ensure compatibility with your PCB footprint and soldering process. Cross-reference the manufacturer's part number to avoid confusion with similar quad-port variants.

Selection Notes

Select this component when a single integrated solution for four Ethernet ports is required. It simplifies board space constraints compared to discrete transformers. Consider the thermal performance and isolation ratings if operating in harsh environments. Verify that the voltage and current specifications align with your PHY chip requirements.

Part Context

Allied Components International manufactures magnetic components for networking applications. The AGTL series focuses on providing integrated solutions for Ethernet connectivity. This quad-port transformer replaces multiple discrete components, reducing assembly complexity and improving reliability in gigabit network designs.
