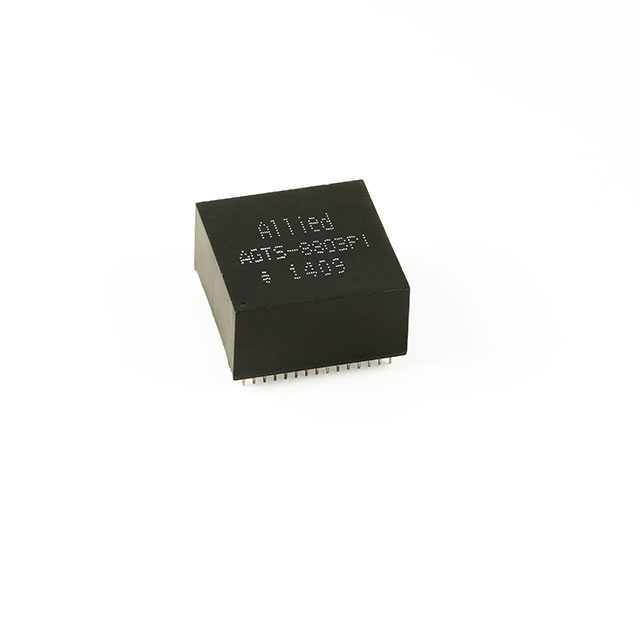

AGTS-8803PI
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：100/1000 Base T Gigabit
- Series：-
- Mfr：Allied Components International
- Package：Tube
- Transformer Type：LAN 100/1000 Base-T, Power over Ethernet (PoE)
- Inductance：350µH
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1CT:1CT
- Mounting Type：Through Hole
- Size / Dimension：1.154" L x 1.146" W (29.30mm x 29.10mm)
- Height - Seated (Max)：0.591" (15.00mm)
- Operating Temperature：-40°C ~ 85°C
- Grade：-
- Qualification：-
Download product information
Overview
The AGTS-8803PI is a pulse transformer manufactured by Allied Components International, designed for LAN applications supporting 100/1000 Base-T Gigabit Ethernet standards. It features a quad port configuration with Power over Ethernet Plus (PoE+) capability. The component utilizes a through-hole mounting style and operates within a temperature range of -40°C to +85°C. Key electrical specifications include an inductance of 350µH and a 1CT:1CT winding ratio. The physical dimensions are approximately 29.3mm by 29.1mm.
Feature Summary
- Supports 100/1000 Base-T Gigabit Ethernet data transmission
- Integrated Power over Ethernet Plus (PoE+) functionality
- Quad port design for multi-line connectivity
- Through-hole construction for robust mechanical attachment
Applications
- Gigabit Ethernet network interface cards
- PoE+ powered end-point devices
- Network switches and hubs
- Industrial LAN communication modules
Procurement Notes
Verify the specific datasheet version from Allied Components International to confirm pinout compatibility and RoHS status before integration. Ensure that the PCB footprint matches the 29.3x29.1mm package dimensions. Confirm that the system voltage requirements align with PoE+ standards to prevent component damage during operation.
Selection Notes
Select this component when a quad-port solution with integrated PoE+ is required for Gigabit Ethernet applications. The through-hole format is suitable for high-reliability environments where mechanical stress resistance is prioritized over surface area constraints. Consider the operating temperature range of -40°C to +85°C for industrial or outdoor deployments.
Part Context
This part belongs to the AGTS series of pulse transformers from Allied Components International, specifically engineered for LAN isolation and signal coupling. It complements other models like the AGT-5004S, which offers dual-port configurations. The series focuses on providing reliable galvanic isolation for high-speed data networks while simultaneously delivering power to connected devices.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs by comparing pin assignments and electrical characteristics against alternative quad-port PoE+ transformers.
