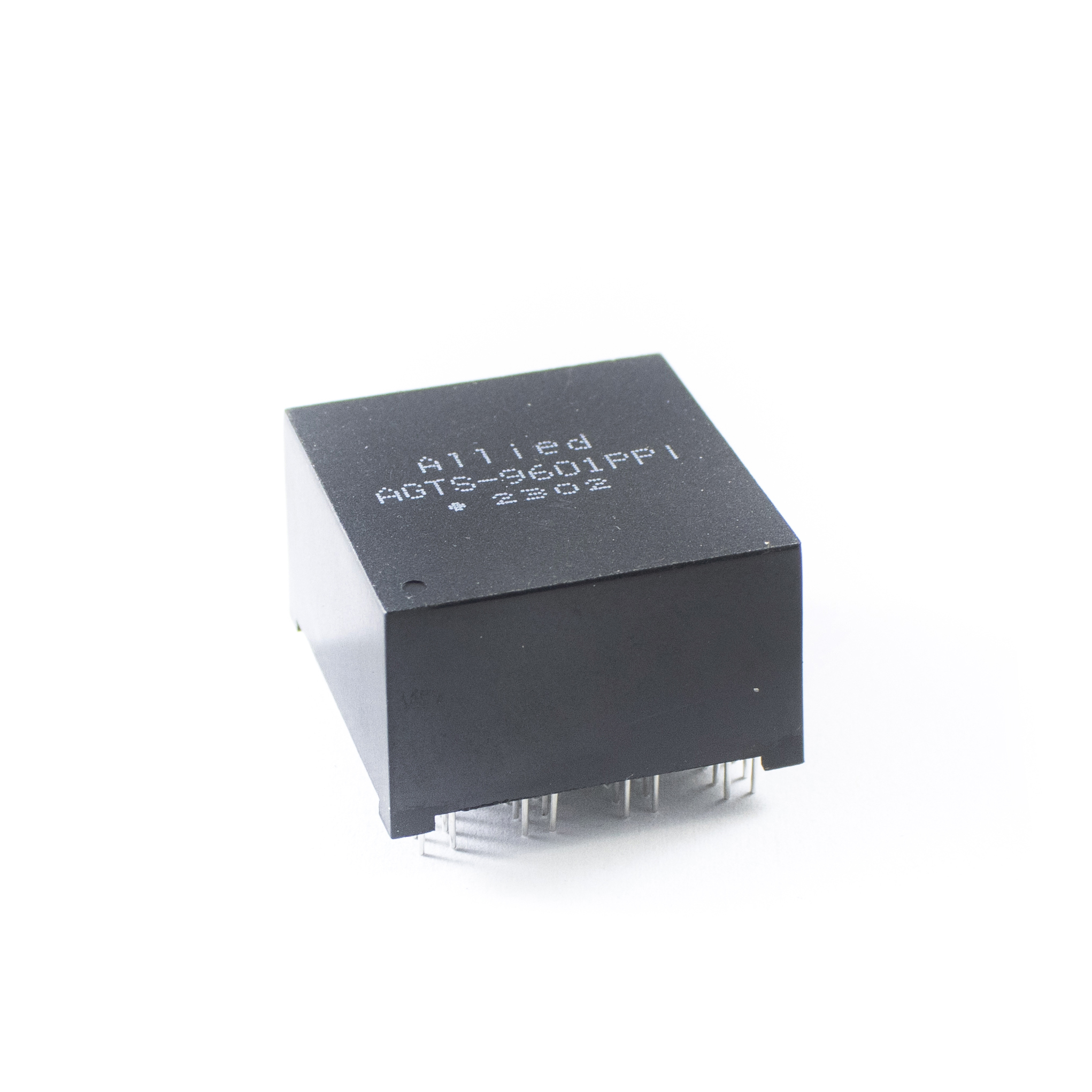

AGTS-9601PPI

$6.59

Description：100/1000 Base-T Gig 4-Port PoE
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)

SKU:1bf1ada86cda Category: Pulse Transformers Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：100/1000 Base-T Gig 4-Port PoE
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)
Transformer Type：LAN 100/1000 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT
Mounting Type：Through Hole
Size / Dimension：1.106" L x 1.138" W (28.09mm x 28.91mm)
Height - Seated (Max)：0.690" (17.53mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

AGTS-9601PPI

Overview

The AGTS-9601PPI is a Gigabit Ethernet transformer module designed for LAN and telecom applications. It supports 10/100/1000 Base-T data rates and complies with the IEEE 802.3bt specification. The component operates within a standard temperature range of -40°C to +85°C. It provides integrated magnetics for Ethernet connectivity, ensuring signal integrity and isolation in network infrastructure equipment.

Feature Summary

Supports 10/100/1000 Base-T transmission speeds
Complies with IEEE 802.3bt PoE++ specifications
Operates reliably across extended industrial temperature ranges

Applications

LAN infrastructure equipment
Telecom network devices
Ethernet switch modules
PoE++ powered devices

Procurement Notes

Verify that the specific part number matches the required IEEE 802.3bt compliance level and pin configuration for your PCB layout. Confirm the operating temperature range meets your environmental requirements. Ensure compatibility with your network interface controller. Cross-reference datasheet diagrams for correct mounting orientation.

Selection Notes

Select this module when IEEE 802.3bt PoE++ support is required for high-power Ethernet applications. Consider the standard operating temperature range suitable for general indoor or controlled environments. Evaluate space constraints against the module's physical footprint. Verify integration with existing network architecture standards.

Part Context

Allied Components International manufactures magnetic components including custom and industry-standard modules. This product belongs to their line of Gigabit Ethernet transformers. The company specializes in design and production of inductors, ferrite beads, and custom magnetics for global markets.

Replacement Considerations

Check pinout compatibility and electrical specifications before substituting. Verify equivalent IEEE 802.3bt certification status. Ensure physical dimensions match the original design. Consult manufacturer documentation for direct cross-reference lists.
