AH-01

Overview

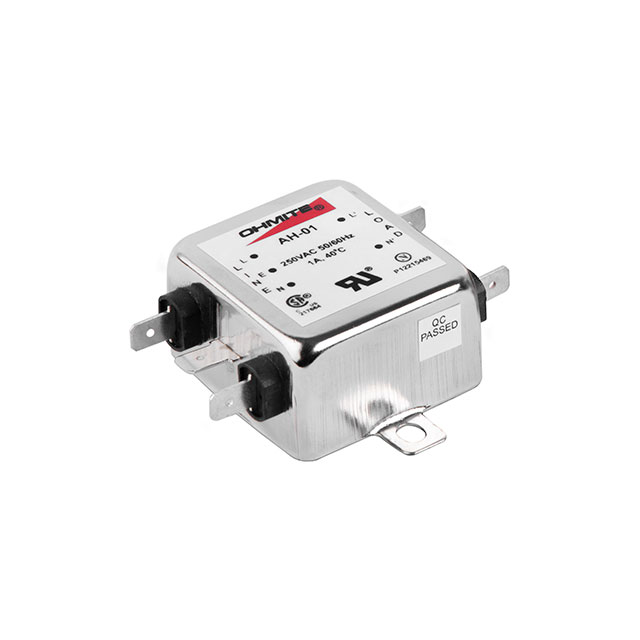

The Ohmite AH-01 is a single-phase, two-stage EMC/EMI line filter module designed for chassis mounting. It operates with a voltage rating of 250 VAC and supports frequencies of 50/60 Hz. The unit provides a current rating of 1 A and utilizes quick connect terminals for installation.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design for secure integration
• Quick connect terminal interface

Applications

• Electromagnetic interference suppression in AC power lines
• Equipment requiring single-phase noise filtration
• Industrial control systems needing EMI mitigation

Procurement Notes

Verify the specific datasheet version to confirm terminal type and physical dimensions before integration. Ensure the operating environment remains within the specified voltage and current limits. Confirm that the chassis mounting style aligns with the enclosure design requirements.

Selection Notes

Select this component when a compact, single-phase solution is required for low-current applications. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify compatibility with the system's grounding scheme and available mounting space.

Part Context

Ohmite Manufacturing Company specializes in resistive components and passive filters. The AH-01 belongs to their line filter modules category, addressing electromagnetic compatibility needs in electronic equipment. This product complements their broader portfolio of power management solutions.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
