AH-15

Overview

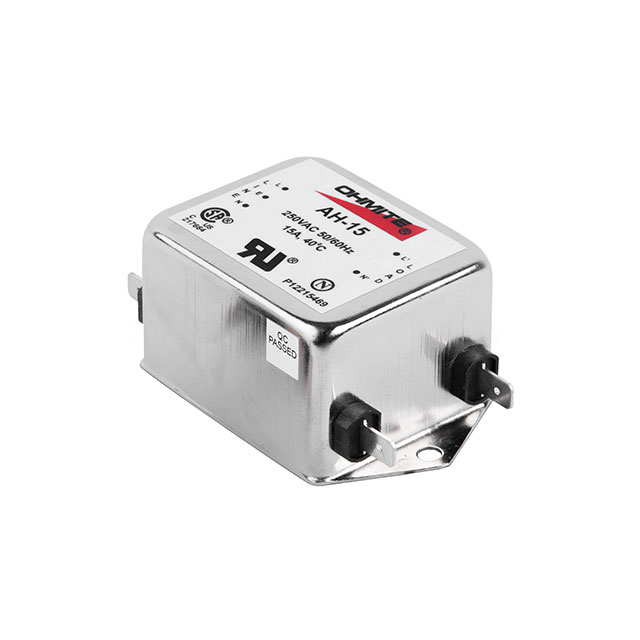

The AH-15 is a single-phase, dual-stage EMI/EMC power line filter manufactured by Ohmite. It is designed for high-performance noise suppression in AC power applications. The unit operates at a rated voltage of 250VAC and supports a current capacity of 15A at 50/60Hz frequencies. This component utilizes a two-stage filtering architecture to effectively attenuate electromagnetic interference across power lines.

Feature Summary

• Dual-stage filtering architecture for enhanced noise attenuation
• Single-phase design optimized for standard AC power lines
• High-performance construction for effective EMI/EMC suppression

Applications

• Industrial equipment power input stages
• Medical device power supply filtering
• Commercial machinery noise reduction

Procurement Notes

Verify the specific datasheet version for the AH-15 to confirm terminal configuration and mounting requirements. Ensure the application environment does not exceed the 250VAC or 15A ratings. Confirm compliance with relevant regional safety standards prior to integration into final assemblies.

Selection Notes

Select this model when dual-stage attenuation is required for single-phase AC systems. The 15A rating suits moderate to high-power loads. Verify that the physical footprint and quick-connect terminals align with the system's wiring infrastructure and enclosure constraints.

Part Context

This component belongs to Ohmite's AH Series of power line filters. The series provides various configurations for EMI suppression. The AH-15 specifically addresses single-phase applications requiring robust noise filtration within a compact module form factor.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer catalogs for cross-references based on electrical specifications.
